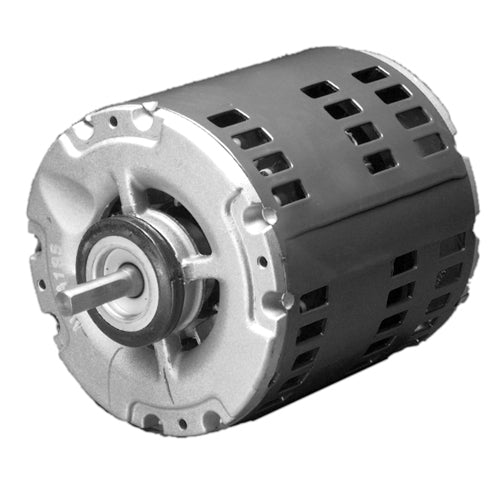

5149 U.S. Motors Split Phase Evaporative Cooler Motor (1 HP, 115/230 Volts, 1725 RPM/Spds.)
5149 U.S. Motors Split Phase Evaporative Cooler Motor (1 HP, 115/230 Volts, 1725 RPM/Spds.)
[COUNT] shoppers are looking at this right now
No reviews
SKU:5149
Regular price
$499.76 USD
Regular price
$0.00 USD
Sale price
$499.76 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 5149 HP: 1, RPM/Spds.: 1725, Volts: 115/230, Frame: 56, Amps: 15.1/7.5, Shaft Length (N): 1.9, Shaft U: 0.625, Bearings: Ball, Protection: Auto, Enclosure: Open Dripproof,
| Applications | |
| Designed to meet manufacturer's requirements for evaporative cooling units. | |
| Features | |
| Re-Oilable Bearings | Zinc-Phosphate Stator Studs And Nuts |
| Class B Insulation | Corrosion Resistant Rotor Core And Actuator Assembly |
| CW Rotation Shaft End | Industry Standard Hub To Hub Dimension |
| Automatic Reset Thermal Overload Protector | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
5149 |
HP |
1 |
RPM/Spds. |
1725 |
Volts |
115/230 |
Frame |
56 |
Amps |
15.1/7.5 |
Shaft Length (N) |
1.9 |
Shaft U |
0.625 |
Apx. Wt. (lb) |
27 |
Total C |
11.8 |
Bearings |
Ball |
Protection |
Auto |
Enclosure |
Open Dripproof |
Type |
Split Phase Evaporative Cooler Motor |
SF |
1 |
Diameter |
6.3" |
Speed |
Single Speed |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
