Little Giant

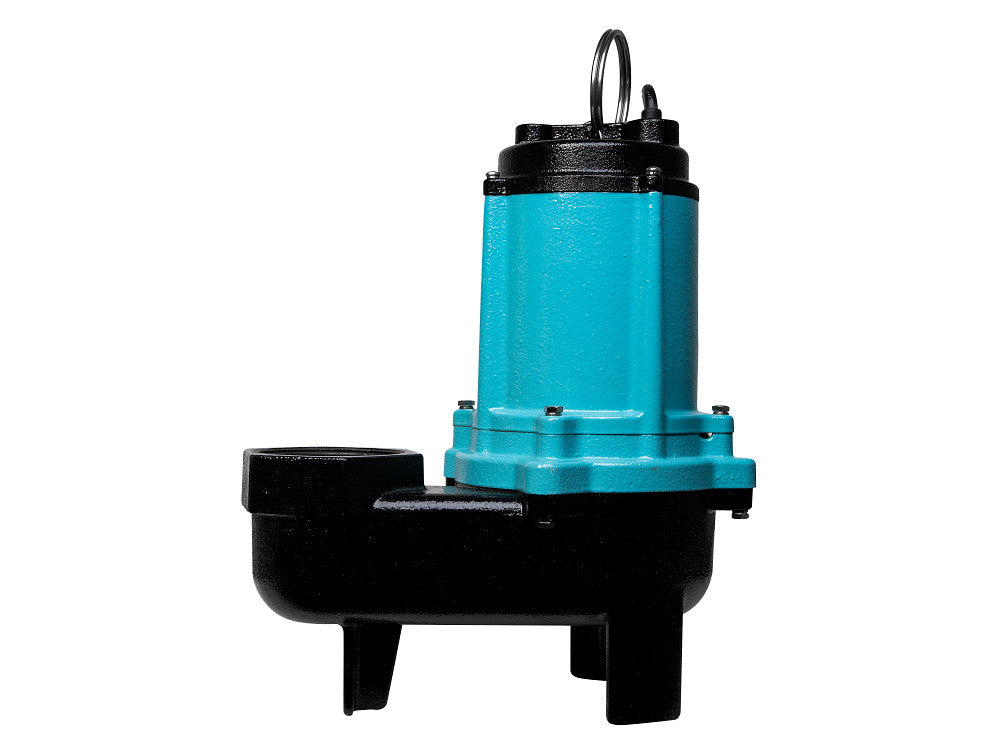

511436 Little Giant 10SC Series Cast Iron Sewage Pump (10SC-CIM Model, 1/2 HP, 60 Hz, 230 Volt, Single Phase, 5.5 Full Load Amps, Manual Switch Type, 130 Max GPM, 2" Max Solids, 3" Discharge, 20' Cord)

511436 Little Giant 10SC Series Cast Iron Sewage Pump (10SC-CIM Model, 1/2 HP, 60 Hz, 230 Volt, Single Phase, 5.5 Full Load Amps, Manual Switch Type, 130 Max GPM, 2" Max Solids, 3" Discharge, 20' Cord)

[COUNT] shoppers are looking at this right now

511436

$670.29 USD
$1,173.00 USD $670.29 USD
Sale Sold out
Shipping calculated at checkout.

Little Giant 511436, 10SC , 1/2 HP, 230 volt, Manual Switch, 3" Discharge,

Applications
Sewage and Effluent Wastewater Transfer, Dewatering
Features
Permanent Split Capacitor (PSC)
Energy-saving low amp draw
Designed for continuous duty
Multiple switch options for automatic operation
cCSAus listed

Specifications

Brand
Little Giant
Catalog Number
511436
Type
Sewage and Effluent Wastewater Transfer
Series
10SC
Model
10SC-CIM
HP
1/2
Volts
230
Switch Type / Operation
Manual
Discharge
3"
Cord
20'
Weight (lbs)
36.5
Max Water Temp
147 F
Hz
50/60
GPM @ 5 ft
120
GPM @ 10 ft
100
GPM @ 15 ft
80
Shut-Off
25 ft
PSI
10.8
Solids
up to 2" dia.
Dimensions
14"x11.72"x9.5"
Motor Housing
Epoxy-coated cast iron
Impeller Type
Vortex
Volute
Epoxy-coated cast iron
Mechanical Shaft Seal
Nitrile with carbon and ceramic faces
Shaft
Steel
Bearings
Upper sintered sleeve and lower ball bearings
Impeller Material
Thermoplastic elastomer
Warranty
3-Year
