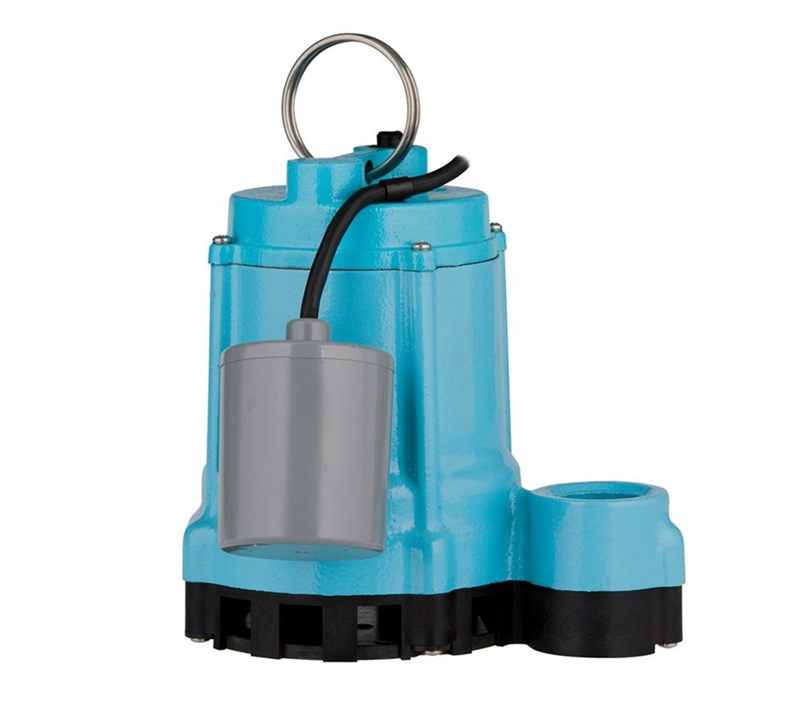

509806 Little Giant 9EC Series Effluent Pump (9EC-CIM Model, 4/10 HP, 115 Volts, Single Phase, Manual Switch, 1.5" Discharge, 10' Cord)

509806 Little Giant 9EC Series Effluent Pump (9EC-CIM Model, 4/10 HP, 115 Volts, Single Phase, Manual Switch, 1.5" Discharge, 10' Cord)

[COUNT] shoppers are looking at this right now

509806

$471.43 USD
$825.00 USD $471.43 USD
Sale Sold out
Shipping calculated at checkout.

Little Giant 509806, 9EC , 4/10 HP, 115 volts, Manual Switch Type / Operation,
Applications
Effluent Wastewater Removal, Dewatering, Water Transfer
Features
Permanent Split Capacitor (PSC)
Designed for continuous duty
Energy-saving low amp draw
Multiple switch options for automatic operation
cCSAus listed

Specifications

Brand
Little Giant
Catalog Number
509806
Type
Effluent Wastewater Removal
Series
9EC
Model
9EC-CIM
HP
4/10
Volts
115
Switch Type / Operation
Manual
On Level
NA
Off Level
NA
Cord
20'
Weight (lbs)
27.5
Hz
60
Amps
7.5
Watts
800
Max. Water Temp.
140 F
GPM @ 5 ft
70
GPM @ 10 ft
65
GPM @ 20 ft
50
GPM @ 30 ft
26
Shut-Off
40 ft
PSI
17.3
Discharge
1-1/2" FNPT
Solid Handling
up to 3/4" Dia.
Motor Housing
Epoxy-coated cast iron
Impeller Material
Thermoplastic elastomer
Volute
Epoxy-coated cast iron
Motor Shaft
Steel
Mechanical Shaft Seal
Nitrile with carbon and ceramic faces
Fasteners
Stainless steel
Dimensions
11"x8.9"x8.4"
Warranty
3-Year
