Little Giant

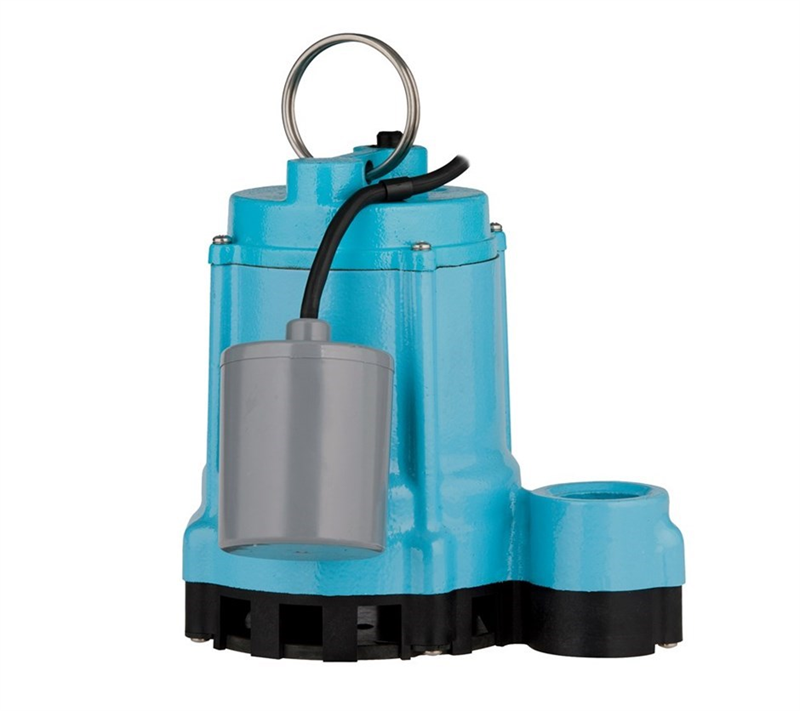

509805 Little Giant 9EC Series Effluent Wastewater Pump (Model # 9EC-CIM, 4/10 HP, 60 Hz, Single Phase, 115 Volts, 3/4" Max Solids, 70 GPM Max, 1.5" NPT Discharge, Manual Switch, 20' Cord)

509805 Little Giant 9EC Series Effluent Wastewater Pump (Model # 9EC-CIM, 4/10 HP, 60 Hz, Single Phase, 115 Volts, 3/4" Max Solids, 70 GPM Max, 1.5" NPT Discharge, Manual Switch, 20' Cord)

[COUNT] shoppers are looking at this right now

509805

$334.99 USD
$828.00 USD $334.99 USD
Sale Sold out
Shipping calculated at checkout.

Little Giant 509805, 9EC , 4/10 HP, 115 volts, Manual Switch Type / Operation,

Applications
Effluent Wastewater Removal, Dewatering, Water Transfer
Features
Permanent Split Capacitor (PSC)
Designed for continuous duty
Energy-saving low amp draw
Multiple switch options for automatic operation
cCSAus listed

Specifications

Brand
Little Giant
Catalog Number
509805
Type
Effluent Wastewater Removal
Series
9EC
Model
9EC-CIM
HP
4/10
Volts
115
Switch Type / Operation
Manual
On Level
NA
Off Level
NA
Cord
20'
Weight (lbs)
27.5
Hz
60
Amps
7.5
Watts
800
Max. Water Temp.
140 F
GPM @ 5 ft
70
GPM @ 10 ft
65
GPM @ 20 ft
50
GPM @ 30 ft
26
Shut-Off
40 ft
PSI
17.3
Discharge
1-1/2" FNPT
Solid Handling
up to 3/4" Dia.
Motor Housing
Epoxy-coated cast iron
Impeller Material
Thermoplastic elastomer
Volute
Epoxy-coated cast iron
Motor Shaft
Steel
Mechanical Shaft Seal
Nitrile with carbon and ceramic faces
Fasteners
Stainless steel
Dimensions
11"x8.9"x8.4"
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
