Little Giant

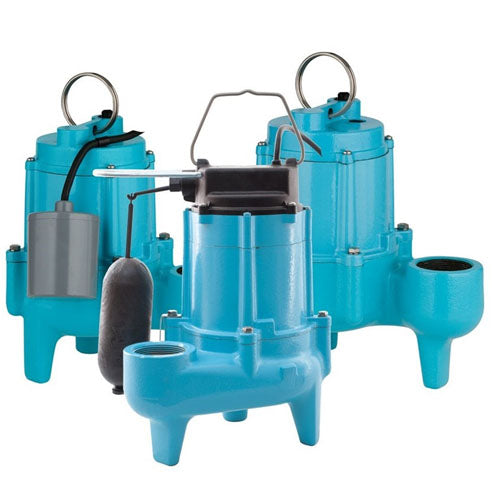

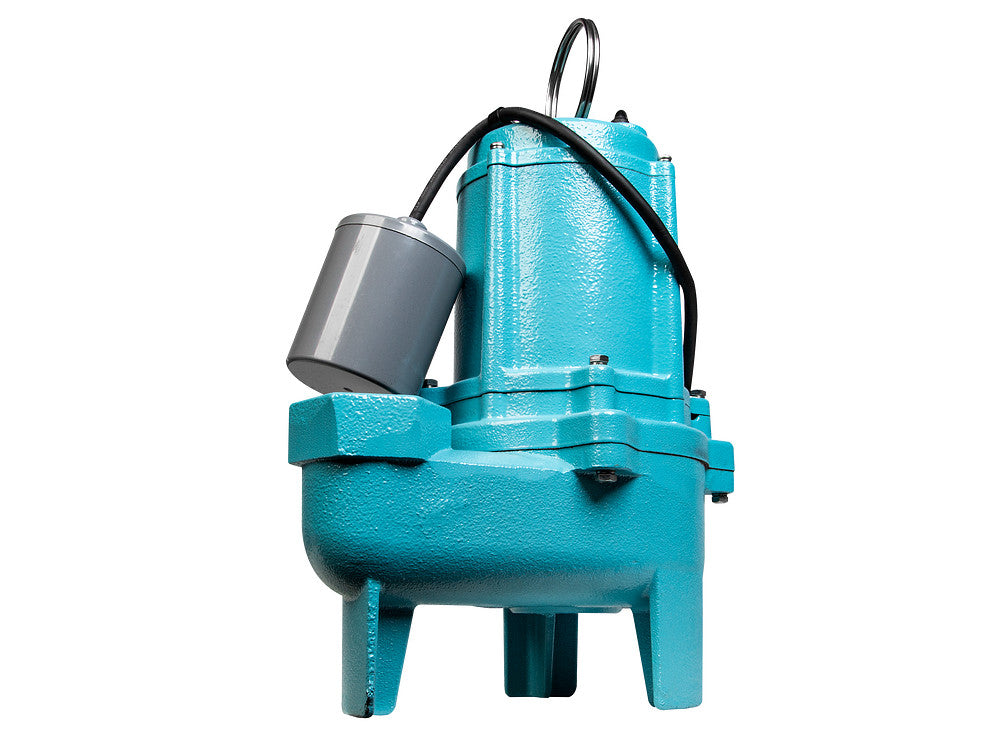

509412 Little Giant 9SC Series Cast Iron Sewage Pump (Model # 9SC-CIA-RF, 4/10 HP, 115 Volt, Single Phase, 60 Hz, 8.7 PSI, 2" Max Solids, 100 Max GPM, Piggyback Mechanical Float, 2" NPT Discharge, 20' Cord)

509412 Little Giant 9SC Series Cast Iron Sewage Pump (Model # 9SC-CIA-RF, 4/10 HP, 115 Volt, Single Phase, 60 Hz, 8.7 PSI, 2" Max Solids, 100 Max GPM, Piggyback Mechanical Float, 2" NPT Discharge, 20' Cord)

[COUNT] shoppers are looking at this right now

509412

$384.83 USD
$1,036.00 USD $384.83 USD
Sale Sold out
Shipping calculated at checkout.

Little Giant 509412, 9SC , 4/10 HP, 115 volt, Piggyback Mechanical Float, 2" Discharge,

Applications
Sewage and Effluent Wastewater Transfer, Dewatering
Features
Permanent Split Capacitor (PSC)
Energy-saving low amp draw
Designed for continuous duty
Multiple switch options for automatic operation
cCSAus listed

Specifications

Brand
Little Giant
Catalog Number
509412
Type
Sewage and Effluent Wastewater Transfer
Series
9SC
Model
9SC-CIA-RF
HP
4/10
Volts
115
Switch Type / Operation
Piggyback Mechanical Float
Discharge
2"
On Level
16" - 19"
Off Level
9" - 11"
Cord
20'
Weight (lbs)
38.4
Max Water Temp
140 F
Hz
60
Amps
8
Watts
870
GPM @ 5 ft
100
GPM @ 10 ft
80
GPM @ 15 ft
60
Shut-Off
20 ft
PSI
8.7
Solids
up to 2" dia.
Dimensions
13.6"x10.4"x8.6"
Motor Housing
Epoxy-coated cast iron
Impeller Type
Vortex
Volute
Epoxy-coated cast iron
Mechanical Shaft Seal
Nitrile with carbon and ceramic faces
Shaft
Steel
Bearings
Upper sintered sleeve and lower ball bearings


Support Documents (pdf)


  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
