WEG

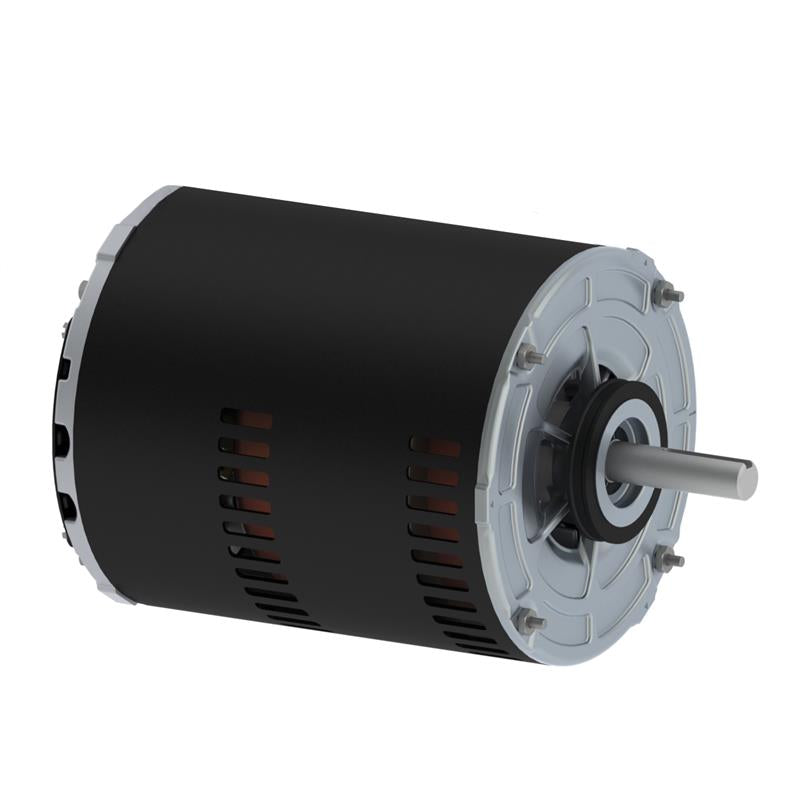

.5082OS1DEC56 WEG Motor (1/2-1/7 HP, 1800/1200 RPM, Single Phase, 56 Frame, ODP Enclosure, 240 Voltage)

.5082OS1DEC56 WEG Motor (1/2-1/7 HP, 1800/1200 RPM, Single Phase, 56 Frame, ODP Enclosure, 240 Voltage)

.5082OS1DEC56

$160.33 USD
$160.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .5082OS1DEC56, Commercial HVAC Motors Series, 1/2-1/7 HP, 0.37/0.13 KW, 1800/1200 RPM, Single Phase, 56 Frame, ODP Enclosure, Belly Mount Motor Mount, 240 Voltage
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
.5082OS1DEC56
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
1/2-1/7
KW
0.37/0.13
RPM
1800/1200
Phase
Single
C-Dimentions
9.53
Service Factor
1
Frame
56
Enclosure
ODP
Full Load Amps
4.80/2.10
Motor Mount
Belly Mount
Voltage
240
Warranty
1 Year
