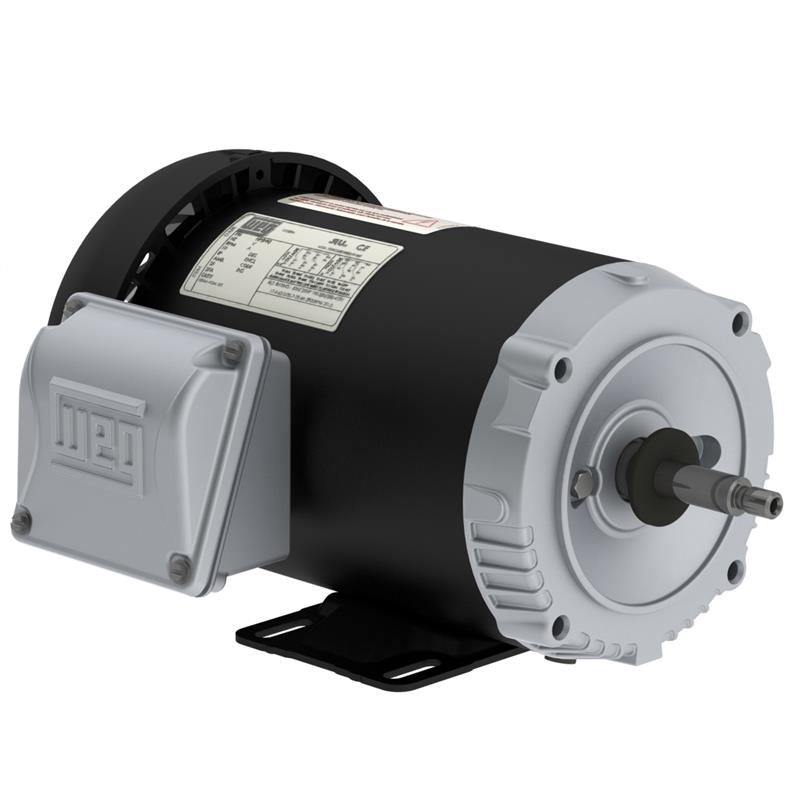

.5036ES3EJP56J-S WEG Motor, Jet Pump (0.5 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3450 RPM)

.5036ES3EJP56J-S WEG Motor, Jet Pump (0.5 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3450 RPM)

.5036ES3EJP56J-S

$194.58 USD
$194.58 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor .5036ES3EJP56J-S, 0.5 HP , 3450 RPM, B56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications
Commercial and Industrial pumps, Residential pumps(Jacuzzis, pools, hot tubs), Jet pump motor system, Hydraulic pumps
Features
Jet Pump Motor, 3-Phase, Rolled Steel, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
.5036ES3EJP56J-S
HP
0.5 HP
RPM
3450
FRAME
B56
Mount
Foot Mount
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
23
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
1.70-1.65/0.825 A
LOCKED ROTOR CURRENT IL IN
8
LOCKED ROTOR CURRENT
13.2/6.60 A
LOCKED ROTOR TORQUE
4.8
BREAKDOWN TORQUE
4
EFFICIENCY 50
58
EFFICIENCY 75
66
EFFICIENCY 100
72
POWER FACTOR 50
0.63
POWER FACTOR 75
0.73
POWER FACTOR 100
0.8
SERVICE FACTOR
1.15 (1.00 at 208V)
INERTIA KGM2
0.00117 kgm
INERTIA SQ FT
0.02776 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
0.960/0.480 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
1.02 Nm
FULL LOAD TORQUE FT
0.751 .ft
SLIP
0.0417
DESIGN
A
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
