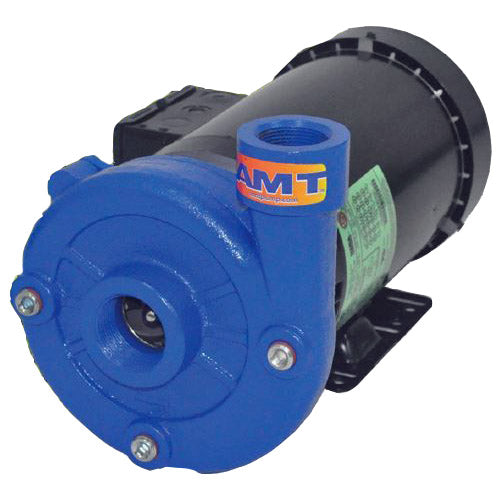

5033-95 AMT Straight Centrifugal Pump (2 HP, 208-230/460 Volts, 3 Phase, 1-1/2" Suction, 1-1/4" Discharge, 1/8" Max Solids)

5033-95 AMT Straight Centrifugal Pump (2 HP, 208-230/460 Volts, 3 Phase, 1-1/2" Suction, 1-1/4" Discharge, 1/8" Max Solids)

👁️ [COUNT] People are currently viewing this product.

5033-95

$734.00 USD
$1,101.00 USD $734.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 5033-95, , 2 HP, 208-230/460 Volts, 3 Phase,

Applications
AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8 diameter for chemical processing and liquid transfer. These straight centrifugal heavy duty industrial pumps are available in a variety of construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors.
Features
Pumps are not self-priming and require flooded suction. Pumps are not self-priming and require flooded suction.
Discharge Port Rotates in 90 degree Increments
NEMA Base Mounted Motor
(3) Front Drain Plugs, Located 90 degree Apart

Specifications

Brand
AMT
Catalog Number
5033-95
Type
AMT Straight Centrifugal Pumps
Model
5033-95
HP
2
Volts
208-230/460
Enclosure
TEFC
Frame
56J
Phase
3
Hz
60
Full Load Amps
7/4
Pump Curve
C
Suction
1-1/2
Discharge
1-1/4
Pump Length (In/cm)
15.1 [38.3]
Casing
Cast Iron
SHAFT SEAL
Viton/SS
Impeller
Stainless Steel
Approx. Weight
65
RPM
3450
Max Solids
1/8" Diameter
QSP
QSP
Mounting Base
Not Included - Item # A201-95
Notes
See support documents
Pump Curves
See support documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
