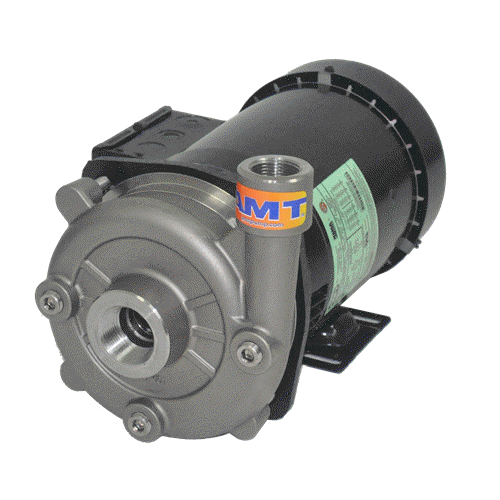

5023-98 AMT Stainless Steel Straight Centrifugal Pump (1 HP, 208-230/460 Volts, 3 Phase, 1-1/4" Suction, 1" Discharge, 1/8" Max Solids)
5023-98 AMT Stainless Steel Straight Centrifugal Pump (1 HP, 208-230/460 Volts, 3 Phase, 1-1/4" Suction, 1" Discharge, 1/8" Max Solids)
[COUNT] shoppers are looking at this right now
No reviews
SKU:5023-98
Regular price
$1,002.00 USD
Regular price
$1,503.00 USD
Sale price
$1,002.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 5023-98, , 1 HP, 208-230/460 Volts, 3 Phase,
| Applications | |
| AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8 diameter for chemical processing and liquid transfer. These straight centrifugal heavy duty industrial pumps are available in a variety of construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors. | |
| Features | |
| Pumps are not self-priming and require flooded suction. Pumps are not self-priming and require flooded suction. | |
| Discharge Port Rotates in 90 degree Increments | |
| NEMA Base Mounted Motor | |
| (3) Front Drain Plugs, Located 90 degree Apart | |
Specifications | |
Brand |
AMT |
Catalog Number |
5023-98 |
Type |
AMT Straight Centrifugal Pumps |
Model |
5023-98 |
HP |
1 |
Volts |
208-230/460 |
Enclosure |
TEFC |
Frame |
56J |
Phase |
3 |
Hz |
60 |
Full Load Amps |
4/2 |
Pump Curve |
A |
Suction |
1-1/4 |
Discharge |
1 |
Pump Length (In/cm) |
13.6 [34.5] |
Casing |
Stainless Steel |
SHAFT SEAL |
Viton/SS |
Impeller |
Stainless Steel |
Approx. Weight |
54 |
RPM |
3450 |
Max Solids |
1/8" Diameter |
QSP |
QSP |
Mounting Base |
Not Included - Item # A201-99 |
Notes |
See support documents |
Pump Curves |
See support documents |
Support Documents (pdf) | ||||
