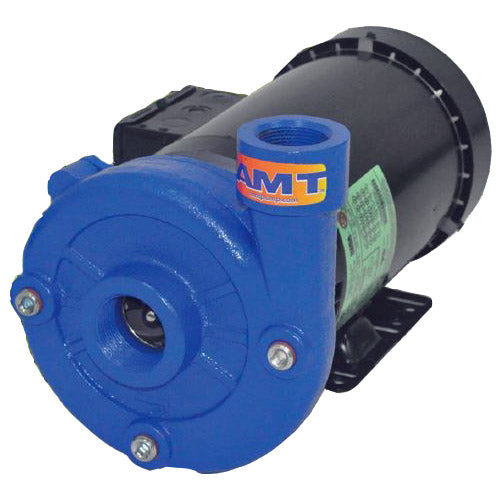

5023-95 AMT Straight Centrifugal Pump (1 HP, 208-230/460 Volts, 3 Phase)

5023-95 AMT Straight Centrifugal Pump (1 HP, 208-230/460 Volts, 3 Phase)

5023-95

$575.97 USD
$887.00 USD $575.97 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 5023-95, , 1 HP, 208-230/460 Volts, 3 Phase,
Applications
AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8 diameter for chemical processing and liquid transfer. These straight centrifugal heavy duty industrial pumps are available in a variety of construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors.
Features
Pumps are not self-priming and require flooded suction. Pumps are not self-priming and require flooded suction.
Discharge Port Rotates in 90 degree Increments
NEMA Base Mounted Motor
(3) Front Drain Plugs, Located 90 degree Apart

Specifications

Brand
AMT
Catalog Number
5023-95
Type
AMT Straight Centrifugal Pumps
Model
5023-95
HP
1
Volts
208-230/460
Enclosure
TEFC
Frame
56J
Phase
3
Hz
60
Full Load Amps
4/2
Pump Curve
A
Suction
1-1/4
Discharge
1
Pump Length (In/cm)
13.6 [34.5]
Casing
Cast Iron
SHAFT SEAL
Viton/SS
Impeller
Stainless Steel
Approx. Weight
54
RPM
3450
Max Solids
1/8" Diameter
QSP
QSP
Mounting Base
Not Included - Item # A201-91
Notes
See support documents
Pump Curves
See support documents
