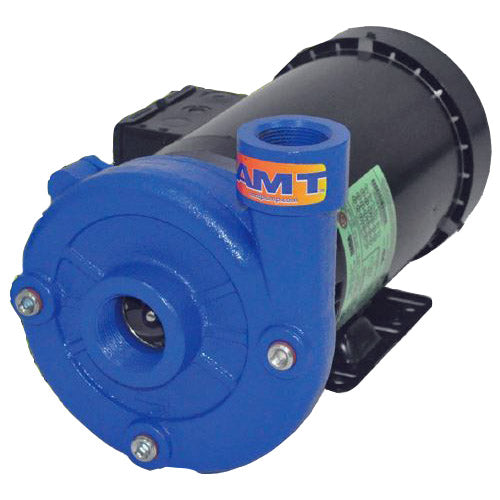

5020-95 AMT Straight Centrifugal Pump (1-1/2 HP, 115-208/230 Volts, 1 Phase)
5020-95 AMT Straight Centrifugal Pump (1-1/2 HP, 115-208/230 Volts, 1 Phase)
SKU:5020-95
Regular price
$596.10 USD
Regular price
$918.00 USD
Sale price
$596.10 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 5020-95, , 1-1/2 HP, 115-208/230 Volts, 1 Phase,
| Applications | |
| AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8 diameter for chemical processing and liquid transfer. These straight centrifugal heavy duty industrial pumps are available in a variety of construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors. | |
| Features | |
| Pumps are not self-priming and require flooded suction. Pumps are not self-priming and require flooded suction. | |
| Discharge Port Rotates in 90 degree Increments | |
| NEMA Base Mounted Motor | |
| (3) Front Drain Plugs, Located 90 degree Apart | |
Specifications | |
Brand |
AMT |
Catalog Number |
5020-95 |
Type |
AMT Straight Centrifugal Pumps |
Model |
5020-95 |
HP |
1-1/2 |
Volts |
115-208/230 |
Enclosure |
TEFC |
Frame |
56J |
Phase |
1 |
Hz |
60 |
Full Load Amps |
22/11 |
Pump Curve |
B |
Suction |
1-1/4 |
Discharge |
1 |
Pump Length (In/cm) |
15.1 [38.3] |
Casing |
Cast Iron |
SHAFT SEAL |
Viton/SS |
Impeller |
Stainless Steel |
Approx. Weight |
55 |
RPM |
3450 |
Max Solids |
1/8" Diameter |
QSP |
No |
Mounting Base |
Not Included - Item # A201-92 |
Notes |
See support documents |
Pump Curves |
See support documents |
Support Documents (pdf) | ||||
