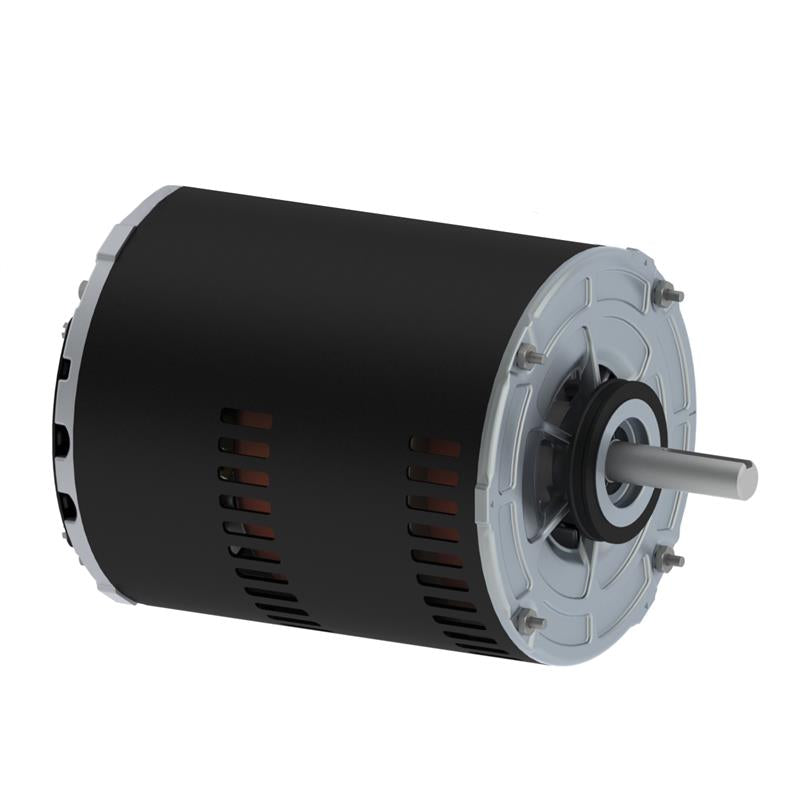

.5018OS1DEC56 WEG Motor (0.5 HP, 1800 RPM, Single Phase, 56 Frame, ODP Enclosure, 240 Voltage)

.5018OS1DEC56 WEG Motor (0.5 HP, 1800 RPM, Single Phase, 56 Frame, ODP Enclosure, 240 Voltage)

[COUNT] shoppers are looking at this right now

.5018OS1DEC56

$300.82 USD
$166.00 USD $300.82 USD
Sale Sold out
Shipping calculated at checkout.

WEG .5018OS1DEC56, Commercial HVAC Motors Series, 0.5 HP, 0.37 KW, 1800 RPM, Single Phase, 56 Frame, ODP Enclosure, Belly Mount Motor Mount, 240 Voltage
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
.5018OS1DEC56
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
0.5
KW
0.37
RPM
1800
Phase
Single
C-Dimentions
9.53
Service Factor
1
Frame
56
Enclosure
ODP
Full Load Amps
4.8
Motor Mount
Belly Mount
Voltage
240
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
