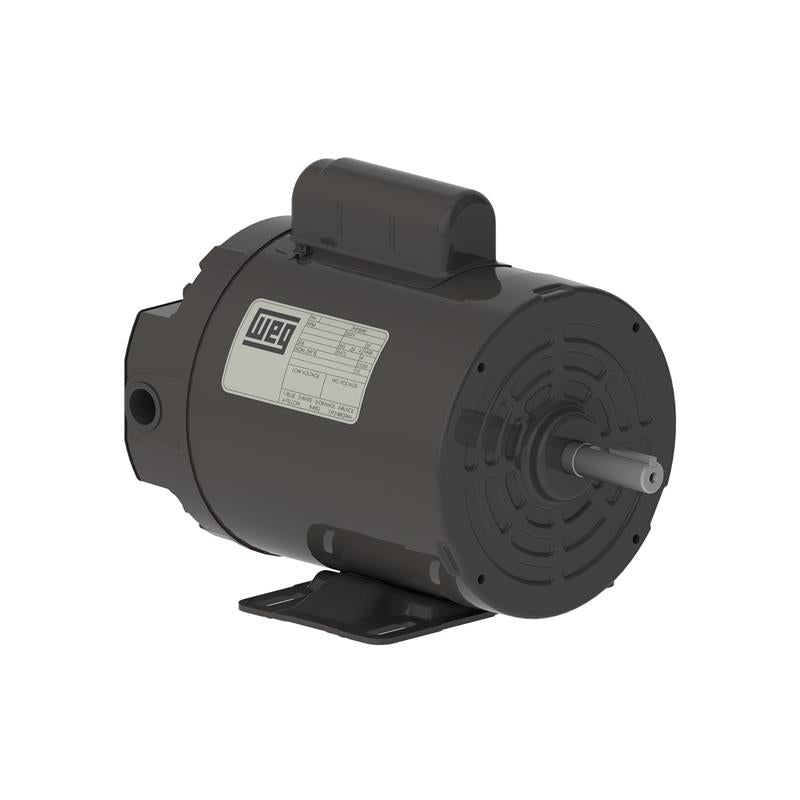

.5018ES1BPFC56 WEG Motor (0.5 HP, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage)

.5018ES1BPFC56 WEG Motor (0.5 HP, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage)

SKU:.5018ES1BPFC56

Regular price $244.86 USD
Regular price Sale price $244.86 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .5018ES1BPFC56, 0.5 HP, 0.37 KW, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage
Applications
WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators.
Features
Double shielded ball bearings
Insulation class B
Automatic Reset Thermal Overload Protector

Specifications

Brand
WEG
Catalog Number
.5018ES1BPFC56
Type
Farm Duty Motors
HP
0.5
KW
0.37
RPM
1800
Phase
1
C Dimension
11.102
Service Factor
1.25
Frame
C56
Enclosure
TEAO
Full Load Amps
4.2
Mount
Foot Mount
Voltage
115/208-230
Warranty
1 Year
