U.S. Motors

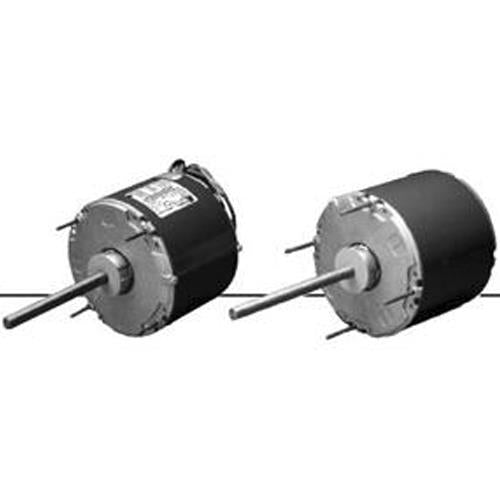

4961 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/3 HP, 230 Volts, 1625 RPM)
4961 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/3 HP, 230 Volts, 1625 RPM)
SKU:4961
Regular price
$348.69 USD
Regular price
Sale price
$348.69 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 4961, HP: 1/3, RPM: 1625, Volts: 230, Diameter: 5.6", Enclosure: Open Dripproof, Air Over, For Cooling Fans
| Applications | |
| Designed to meet manufacturer's requirements for condenser cooling fans. | |
| Features | |
| High Efficiency Economizer Rated (except as noted) | Green Ground Lead |
| 60 Hz | Reversible Rotation |
| Capacitor Mounting Holes in Frame Band | Class B Insulation |
| Continuous Duty, Air Over | 30" Leads |
| Water Slinger | Double Flats on Shaft |
| Designed for use with 370V Capacitors | Enclosed Endshield at Shaft End |
| Automatic Reset Thermal Overload Protector | Sleeve Bearings have All Angle Thrust System |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
4961 |
HP |
1/3 |
RPM |
1625 |
Volts |
230 |
Bearings |
Ball |
Amps |
1.8 |
Cap. MFD |
5 |
Shaft N |
4.9 |
Apx. Wt. (lb) |
17 |
Shell XI |
4.6 |
Total C |
10.7 |
Diameter |
5.6" |
Enclosure |
Open Dripproof, Air Over |
Mount |
Resilient Base - Shaft Up or Horizontal |
Notes |
Without Capacitor |
Type |
Permanent Split Capacitor Condenser Fan Motor |
OEM Replacement |
- |
