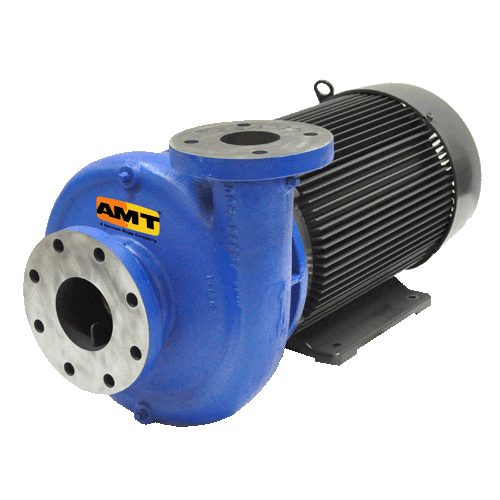

4282-95 AMT 1750 RPM Straight Centrifugal Pump (15 HP, 254JM Frame, TEFC Enclosure, 208-230/460 Volts, 4" Suction, 3" Discharge)
4282-95 AMT 1750 RPM Straight Centrifugal Pump (15 HP, 254JM Frame, TEFC Enclosure, 208-230/460 Volts, 4" Suction, 3" Discharge)
No reviews
SKU:4282-95
Regular price
$4,425.97 USD
Regular price
$6,816.00 USD
Sale price
$4,425.97 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 4282-95, 1750 RPM Straight Centrifugal Pumps Type, 15 HP, 254JM Frame, TEFC Enclosure, 208-230/460 Volts,
| Applications | |
| The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. | |
| Features | |
| Viton Silicon Carbide/Carbon Mechanical Seal | |
| Silicon Bronze Precision Cast Dynamically Balanced Impeller | |
| Bronze Case Wear Ring | |
| 4" x 3" 125 Lb. 8-Bolt Flanged Suction Port & 4-Bolt Flanged Discharge Port | |
| 1/4 " NPT Gauge Taps on Suction & DischargePorts for System Monitoring | |
| Bronze Shaft Sleeve to Protect Motor Shaf | |
| Maximum Casing Pressure 175 PSI | |
| Maximum Temperature 200 Degree F | |
| Includes Seal Flush/Air Relief Valve | |
| Front Drain Plugs | |
| 1750 RPM TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors | |
Specifications | |
Brand |
AMT |
Catalog Number |
4282-95 |
Type |
1750 RPM Straight Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
HP |
15 |
Frame |
254JM |
Enclosure |
TEFC |
Volts |
208-230/460 |
Hz |
60 |
Suction |
4" |
Discharge |
3" |
Phase |
3 |
Max Solids |
1/4" |
Construction |
Cast Iron |
Notes |
See Support Documents |
