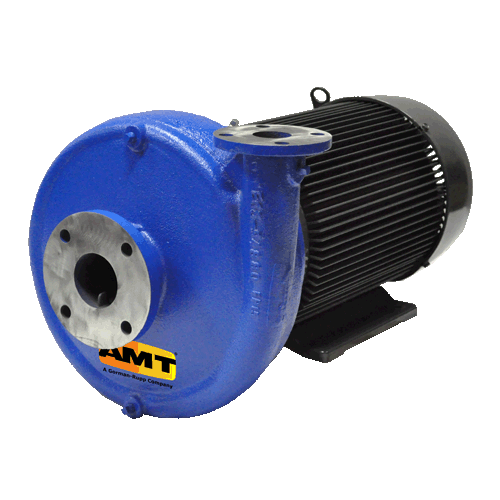

4271-95 AMT 1750 RPM Straight Centrifugal Pump (25 HP, 284JM Frame, TEFC Enclosure, 208-230/460 Voltage @ 60 Hz)
4271-95 AMT 1750 RPM Straight Centrifugal Pump (25 HP, 284JM Frame, TEFC Enclosure, 208-230/460 Voltage @ 60 Hz)
No reviews
SKU:4271-95
Regular price
$6,030.52 USD
Regular price
$9,287.00 USD
Sale price
$6,030.52 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 4271-95, 1750 RPM Straight Centrifugal Pumps Type, 25 HP, 284JM Frame, TEFC Enclosure, 208-230/460 Voltage @ 60 Hz,
| Applications | |
| The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. | |
| Features | |
| Cast Iron Construction | |
| Silicon Bronze Precision Cast Dynamically Balanced Impeller | |
| Bronze Case Wear Ring | |
| 3" x 2" 125 Lb. 4-Bolt Flanged Ports | |
| Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping | |
| 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring | |
| Bronze Shaft Sleeve to Protect Motor Shaft | |
| Includes Seal Flush/Air Relief Valve | |
| Front Drain Plugs | |
| EFC JM NEMA Frame IE2/EPAC Energy Efficient Motors | |
| aximum Temperature 200 F | |
Specifications | |
Brand |
AMT |
Catalog Number |
4271-95 |
Type |
1750 RPM Straight Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
HP |
25 |
Frame |
284JM |
Enclosure |
TEFC |
Voltage @ 60 Hz |
208-230/460 |
Full Load Amps |
67/30 |
Discharge |
2" |
Construction |
Cast Iron |
Seal |
Viton Silicon Carbide/Carbon |
Weight |
510 |
Support Documents (pdf) |
