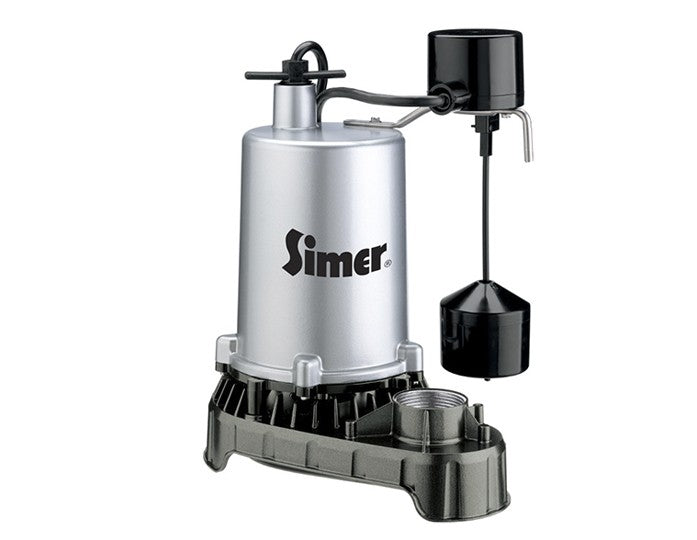

A ½ HP version of our highly engineered sump line – this pump moves up to 6,000 gallons per hour! The vertical switch allows this pump to fit in a sump basin as small as 10” wide.

KEY FEATURES

• Corrosion Resistant Zinc Construction - Dissipates heat quickly and extends motor life
• Uni-Body Motor Housing - Eliminates leak points and maximizes pump life
• Stainless Steel Fasteners and Hardware - Superior quality
• Quadra Seal TM Technology - Provides superior motor protection over single seal designs
• Smooth Flow Hydraulics TM - Deliver high performance for demanding applications
• Vertical Float Switch - Operates in 10” basins or larger

Specifications:

BODY CONSTRUCTION:  Zinc
HORSEPOWER:  1/2
MAXIMUM CAPACITY:  6,000 GPH
FLOW at 10' LIFT:  4,140 GPH
SWITCH TYPE:  Vertical Float
FLOAT SWITCH 'ON' LEVEL:  7-1/2"
FLOAT SWITCH 'OFF' LEVEL:  3"
MINIMUM SUMP DIAMETER:  10"
DISCHARGE PIPE SIZE:  1 1/2” NPT
MAXIMUM SOLIDS HANDLING SIZE:  3/8"
CORD LENGTH:  8'
VOLTAGE:  115 VAC, 60 Hz
