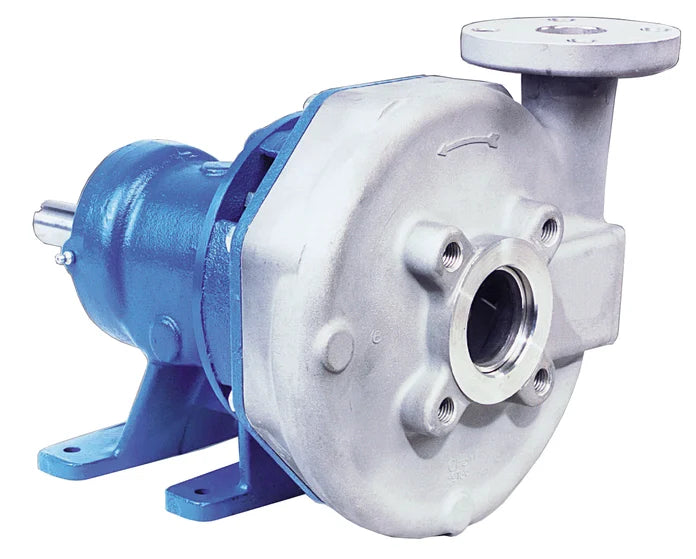

3SSFRMD0 Goulds Frame Mounted Centrifugal Pump - End Only (3757 Series, 2.2 Max. Base HP at 3500 RPM, 1-1/2" Flanged Discharge, 2" Flanged Suction, 4-3/4" Impeller, Stainless Steel Body, Motor Not Included)

3SSFRMD0 Goulds Frame Mounted Centrifugal Pump End Only, 3757 Series, 2.2 Max. Base HP at 3500 RPM, 1-1/2" Flanged Discharge, 2" Flanged Suction, 4-3/4" Impeller, Stainless Steel Body

• Superior precision investment cast 316 stainless steel liquid end components for corrosion resistance and strength
• Frame mounted design provides flexibility of installation and driver arrangements
• Enclosed impeller design provides maximum efficiency and service life with no need for clearance adjustment. Key driven shaft connection with locknut
• Back pull-out design simplifies maintenance by allowing the casing to remain in the piping during disassembly
• Investment cast AISI type 316 stainless steel, volute design for maximum efficiency. Vertical discharge standard, field modifiable to four standard positions
• Shaft and sleeve are made of high strength steel, keyed design non-wetted. Protected from pumpage by O-ring seal and hooked design AISI type 316 stainless steel shaft sleeve
• Standard flow serve Type 31 mechanical seal with carbon versus Silicon-Carbide faces, Viton elastomers and 316 stainless steel metal components. Options are available for high temperature and mild abrasives
• Maximum working pressures to 175 PSIG (12 bars)
• Maximum temperatures to 250° F (121° C) with optional high temperature seal
• Right hand (clockwise) rotation when viewed from driven end
• Standard flange connections conforming to 150 lbs. ANSI drilling
