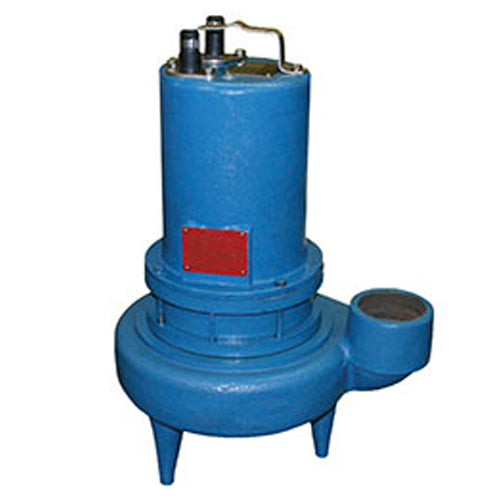

132752 Barnes Submersible Non Clog Sewage Pump (3SE2094L, 2 HP, 200-230 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

132752 Barnes Submersible Non Clog Sewage Pump (3SE2094L, 2 HP, 200-230 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

👁️ [COUNT] People are currently viewing this product.

132752

$3,767.33 USD
$5,651.00 USD $3,767.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Barnes 3SE2094L, Submersible Non Clog Sewage Pump Type, 2 HP, 200-230 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge,
Applications
Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.
Features
Solids Handling Capacity: 2-3 inches, depending on model
Cast iron construction
Epoxy sealed cord housing with strain relief grommet
125 lb. flange design
50,000 hour bearing life

Specifications

Brand
Barnes
Catalog Number
3SE2094L
Type
Submersible Non Clog Sewage Pump
Series
3SE-L
Part Number
132752
HP
2
Voltage
200-230
Phase
3
HZ
60
RPM
1750
Nema Start Code
B/D
Full Load Amps
15.2/13.2
Locked Rotor Amps
35.8/41.2
Cord Size
12/4
Cord Type
SOOW/SOW
Cord O.D (in)
0.680
Seal
Single
Discharge
3" NPT Vertical
Liquid Temperature
104F Continuous
Motor Housing
Cast Iron ASTM
Max Solid Handling Size
2-1/2"
Notes
See Support Documents

Support Documents (pdf)
