Barnes Pumps

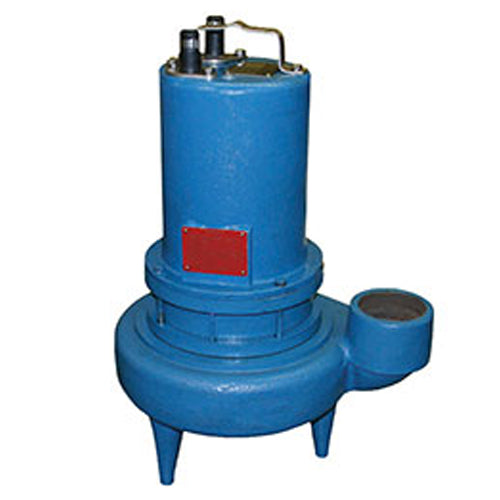

132754 Barnes Submersible Non Clog Sewage Pump (3SE2044L, 2 HP, 460 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

132754 Barnes Submersible Non Clog Sewage Pump (3SE2044L, 2 HP, 460 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

[COUNT] shoppers are looking at this right now

132754

$3,767.33 USD
$5,651.00 USD $3,767.33 USD
Sale Sold out
Shipping calculated at checkout.

Barnes 3SE2044L, Submersible Non Clog Sewage Pump Type, 2 HP, 460 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge,
Applications
Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.
Features
Solids Handling Capacity: 2-3 inches, depending on model
Cast iron construction
Epoxy sealed cord housing with strain relief grommet
125 lb. flange design
50,000 hour bearing life

Specifications

Brand
Barnes
Catalog Number
3SE2044L
Type
Submersible Non Clog Sewage Pump
Series
3SE-L
Part Number
132754
HP
2
Voltage
460
Phase
3
HZ
60
RPM
1750
Nema Start Code
D
Full Load Amps
6.6
Locked Rotor Amps
20.6
Cord Size
14/4
Cord Type
SOOW/SOW
Cord O.D (in)
0.570
Seal
Single
Discharge
3" NPT Vertical
Liquid Temperature
104F Continuous
Motor Housing
Cast Iron ASTM
Max Solid Handling Size
2-1/2"
Notes
See Support Documents
