Barnes Pumps

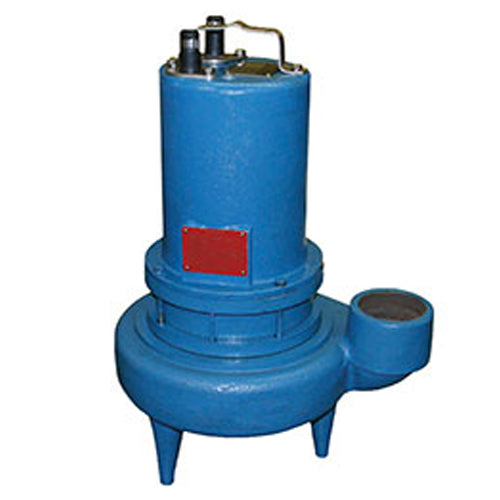

3SE1554L Barnes Submersible Non Clog Sewage Pump (1.5 HP, 575 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

3SE1554L Barnes Submersible Non Clog Sewage Pump (1.5 HP, 575 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

132740

$3,214.67 USD
$4,822.00 USD $3,214.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Barnes 3SE1554L, Submersible Non Clog Sewage Pump Type, 1.5 HP, 575 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge,
Applications
Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.
Features
Solids Handling Capacity: 2-3 inches, depending on model
Cast iron construction
Epoxy sealed cord housing with strain relief grommet
125 lb. flange design
50,000 hour bearing life

Specifications

Brand
Barnes
Catalog Number
3SE1554L
Type
Submersible Non Clog Sewage Pump
Series
3SE-L
Part Number
132740
HP
1.5
Voltage
575
Phase
3
HZ
60
RPM
1750
Nema Start Code
G
Full Load Amps
4.6
Locked Rotor Amps
16.4
Cord Size
14/4
Cord Type
SOOW/SOW
Cord O.D (in)
0.570
Seal
Single
Discharge
3" NPT Vertical
Liquid Temperature
104F Continuous
Motor Housing
Cast Iron ASTM
Max Solid Handling Size
2-1/2"
Notes
See Support Documents

Support Documents (pdf)

View full details
