Barnes Pumps

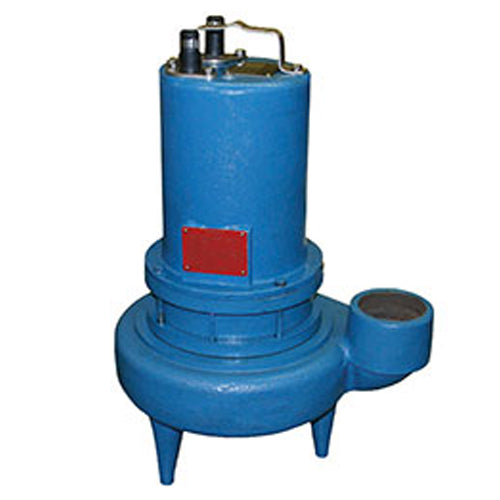

3SE1524L Barnes Submersible Non Clog Sewage Pump (1.5 HP, 230 Voltage, 1 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

3SE1524L Barnes Submersible Non Clog Sewage Pump (1.5 HP, 230 Voltage, 1 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)

SKU:132725

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Barnes 3SE1524L, Submersible Non Clog Sewage Pump Type, 1.5 HP, 230 Voltage, 1 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge,
Applications
Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.
Features
Solids Handling Capacity: 2-3 inches, depending on model
Cast iron construction
Epoxy sealed cord housing with strain relief grommet
125 lb. flange design
50,000 hour bearing life

Specifications

Brand
Barnes
Catalog Number
3SE1524L
Type
Submersible Non Clog Sewage Pump
Series
3SE-L
Part Number
132725
HP
1.5
Voltage
230
Phase
1
HZ
60
RPM
1750
Nema Start Code
C
Full Load Amps
16
Locked Rotor Amps
44.6
Cord Size
12/3
Cord Type
SOOW/SOW
Cord O.D (in)
0.610
Seal
Single
Discharge
3" NPT Vertical
Liquid Temperature
104F Continuous
Motor Housing
Cast Iron ASTM
Max Solid Handling Size
2-1/2"
Notes
See Support Documents
