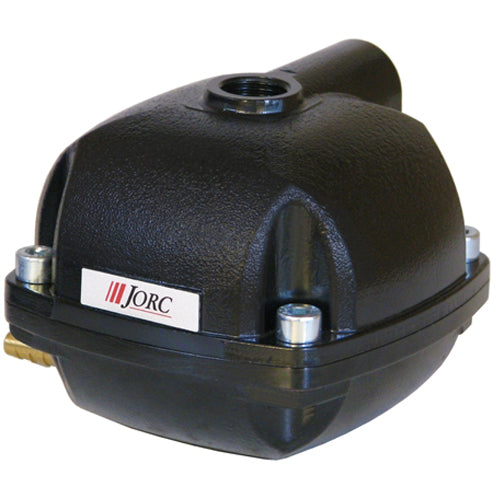

3954 JORC MAG-11 Level Sensing Drain (0 - 230 psi Pressure, 4.055" H x 5.687" W x 4.798" D Dimensions)
3954 JORC MAG-11 Level Sensing Drain (0 - 230 psi Pressure, 4.055" H x 5.687" W x 4.798" D Dimensions)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:3954
Regular price
$235.87 USD
Regular price
$273.00 USD
Sale price
$235.87 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
JORC 3954, Jorc magnetically operated drains , 0 - 230 psi Pressure, 4.055" H x 5.687" W x 4.798" D Dimensions,
| Applications | |
| The Jorc 3954 MAG-11 level sensing drain is magnetically operated. It has no air loss, and does not need a power source to operate. The magnetic actuator opens and closes a cylinder valve to remove condensate from the system. Ideal for refrigerated dryers, liquid separators, coolers, and piston compressors. Works with any size compressed air filter. | |
| Features | |
| Magnetically operated zero air loss drains which requires no control air or power source | |
| Dual 1/2" NPT inlet (top & side) | |
| 1/8" outlet with hose pipe connector | |
| Rated for 0-230 PSI (0-16 bar) | |
| Space saving design | |
| Serviceable valve | |
| 2/2 way direct acting valve | |
| Aluminum housing resists corrosion | |
| Integrated air lock prevention | |
| 360 degree rotating outlet for easier installation | |
Specifications | |
Brand |
JORC |
Catalog Number |
3954 |
Type |
Jorc magnetically operated drains |
Series |
MAG-11 |
Inlet |
1/2" NPT |
Pressure |
0 - 230 psi |
Dimensions |
4.055" H x 5.687" W x 4.798" D |
Max Filter Capacity |
Unlimited |
Max Drainage Capacity |
37.8 gallons per hour |
Valve Seals |
FPM |
Valve Opening |
2mm |
Inlet Height |
4" (top), 3.5" (side) |
Ambient Temperature |
34 F to 122 F |
Housing Material |
Aluminum with ElectroPhoretic (EP) coating |
