U.S. Motors

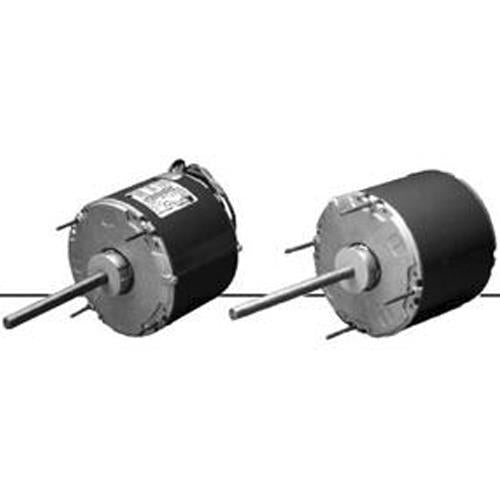

3847 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/3 HP, 230 Volts, 1075 RPM)
3847 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/3 HP, 230 Volts, 1075 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:3847
Regular price
$366.33 USD
Regular price
$0.00 USD
Sale price
$366.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 3847, HP: 1/3, RPM: 1075, Volts: 230, Diameter: 5.6", Enclosure: Open Dripproof, Air Over, For Cooling Fans
| Applications | |
| Designed to meet manufacturer's requirements for condenser cooling fans. | |
| Features | |
| High Efficiency Economizer Rated (except as noted) | Green Ground Lead |
| 60 Hz | Reversible Rotation |
| Capacitor Mounting Holes in Frame Band | Class B Insulation |
| Continuous Duty, Air Over | 30" Leads |
| Water Slinger | Double Flats on Shaft |
| Designed for use with 370V Capacitors | Enclosed Endshield at Shaft End |
| Automatic Reset Thermal Overload Protector | Sleeve Bearings have All Angle Thrust System |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
3847 |
HP |
1/3 |
RPM |
1075 |
Volts |
230 |
Bearings |
Slv |
Amps |
2.2 |
Cap. MFD |
7.5 |
Shaft N |
4.9 |
Apx. Wt. (lb) |
16 |
Shell XI |
4.9 |
Total C |
10.9 |
Diameter |
5.6" |
Enclosure |
Open Dripproof, Air Over |
Mount |
Resilient Base - Shaft Up or Horizontal |
Notes |
Without Capacitor |
Type |
Permanent Split Capacitor Condenser Fan Motor |
OEM Replacement |
- |
Support Documents (pdf) | ||||
| Product Literature | ||||
