U.S. Motors

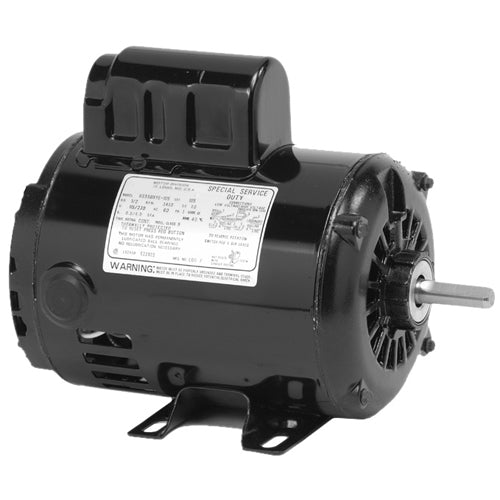

3768 U.S. Motors Special Application Motor (2 HP, 3600 RPM, 115/230 Voltage)

3768 U.S. Motors Special Application Motor (2 HP, 3600 RPM, 115/230 Voltage)

3768

$603.54 USD
$603.54 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors 3768, 2 HP, 3600 RPM, 115/230 Voltage,

Applications
For belt drive air compressor duty high breakdown torque.
Features
Rigid Welded Base
Continuous Duty
Manual Reset Thermal Overload Protector
ODP Enclosure
Class B Insulation
40C Ambient
Ball Bearings
Ball Bearings
Rotation - CCW Facing Shaft End, Non-Reversible
Capacitor Start, Capacitor Run

Specifications

Brand
U.S. Motors
Catalog Number
3768
Type
Special Application Air Compressor Motors
Catalog Number
3768
HP
2
RPM
3600
Voltage
115/230
Phase
Single
Frame
56
Enclosure
ODP
SF
1
"C" Dim.(inches)
11.9
Ship Wt. (lbs)
28
Full Load Amps
15.0/7.5
Symbol
DS-3F
Notes
See Support Documents

Support Documents (pdf)
View full details
