U.S. Motors

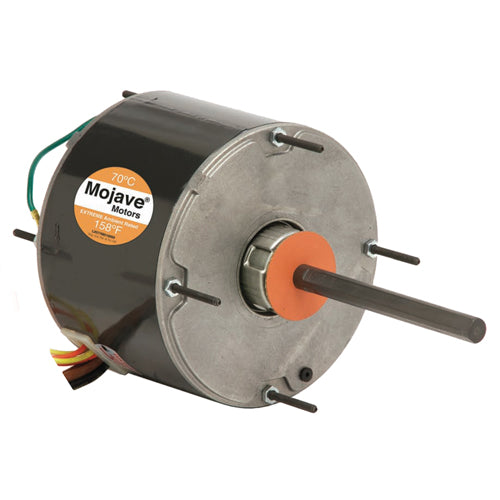

3742H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (3/4 HP, 460 Volts, 1075 RPM)

3742H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (3/4 HP, 460 Volts, 1075 RPM)

3742H

$316.73 USD
$316.73 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson 3742H, HP: 3/4, RPM: 1075, Volts: 460, Diameter: 5.6", Enclosure: TEAO, extreme temperature locations

Applications
Residential and commercial condensing unit fan motors in extreme temperature locations.
Features
158F (70C) Ambient Design Hubless Lead End
Ball Bearings Have All Angle Thrust System Drain Holes Both Ends
Class F Insulation Reversible Rotation
Designed for use with 370V Capacitors Automatic Reset Thermal Overload Protector
Extended Studs Continuous Duty
48" Leads

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
3742H
HP
3/4
RPM
1075
Volts
460
Bearings
Ball
Amps
2
Cap. MFD
10
Shaft N
6
Apx. Wt. (lb)
19
Shell XI
6.6
Total C
12.9
Diameter
5.6"
Enclosure
TEAO
Mount
Stud - All Angle
Notes
Without Capacitor, Extreme High Ambient Design
Type
MOJAVE Series Condenser Fan Motor
