U.S. Motors

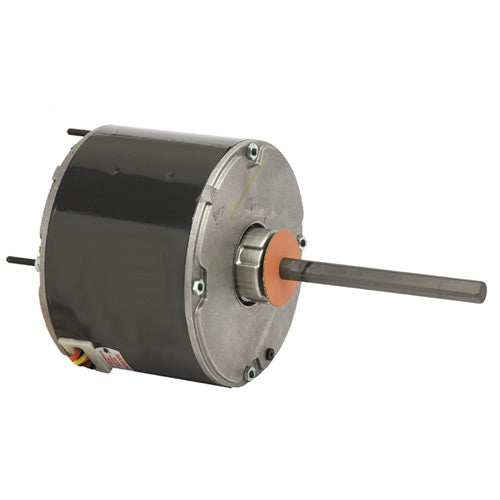

3742 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (3/4 HP, 460 Volts, 1075 RPM)
3742 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (3/4 HP, 460 Volts, 1075 RPM)
[COUNT] shoppers are looking at this right now
SKU:3742
Regular price
$229.15 USD
Regular price
$0.00 USD
Sale price
$229.15 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 3742, HP: 3/4, RPM: 1075, Volts: 460, OEM Direct Replacement: -, Diameter: 5.6", Enclosure: TEAO,
| Applications | |
| Residential and commercial condensing unit fan motors to meet manufacturer's requirements. | |
| Features | |
| 140F (60C) Ambient Design | Hubless Lead End |
| Sleeve Bearings have All Angle Thrust System | Drain Holes Both Ends |
| Class B Insulation | Reversible Rotation |
| Designed for use with 370V Capacitors | Automatic Reset Thermal Overload Protector |
| Extended Studs | Continuous Duty |
| 30" Leads | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
3742 |
HP |
3/4 |
RPM |
1075 |
Volts |
460 |
Bearings |
Ball |
Amps |
2 |
Cap. MFD |
10 |
Shaft N |
6 |
Apx. Wt. (lb) |
22 |
Shell XI |
6.4 |
Total C |
12.9 |
OEM Direct Replacement |
- |
Diameter |
5.6" |
Enclosure |
TEAO |
Type |
Permanent Split Capacitor Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
