U.S. Motors

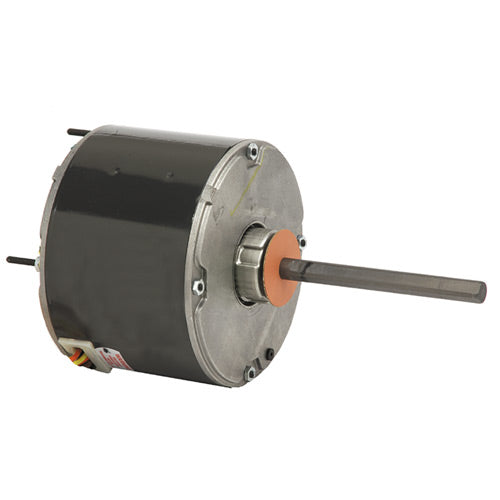

3738 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/2 HP, 460 Volts, 1075 RPM)
3738 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/2 HP, 460 Volts, 1075 RPM)
SKU:3738
Regular price
$268.30 USD
Regular price
Sale price
$268.30 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 3738, HP: 1/2, RPM: 1075, Volts: 460, OEM Direct Replacement: -, Diameter: 5.6", Enclosure: TEAO,
| Applications | |
| Residential and commercial condensing unit fan motors to meet manufacturer's requirements. | |
| Features | |
| 140F (60C) Ambient Design | Hubless Lead End |
| Sleeve Bearings have All Angle Thrust System | Drain Holes Both Ends |
| Class B Insulation | Reversible Rotation |
| Designed for use with 370V Capacitors | Automatic Reset Thermal Overload Protector |
| Extended Studs | Continuous Duty |
| 30" Leads | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
3738 |
HP |
1/2 |
RPM |
1075 |
Volts |
460 |
Bearings |
Ball |
Amps |
1.5 |
Cap. MFD |
10 |
Shaft N |
6 |
Apx. Wt. (lb) |
19 |
Shell XI |
5.9 |
Total C |
12.4 |
OEM Direct Replacement |
- |
Diameter |
5.6" |
Enclosure |
TEAO |
Type |
Permanent Split Capacitor Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
