U.S. Motors

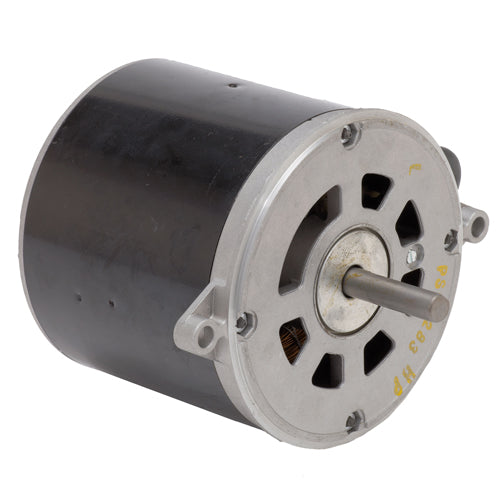

3580 U.S. Motors Oil Burner Motor (1/3 HP, 1725 RPM, 115 Voltage, 56N NEMA Frame, 4 .8 Amps)
3580 U.S. Motors Oil Burner Motor (1/3 HP, 1725 RPM, 115 Voltage, 56N NEMA Frame, 4 .8 Amps)
[COUNT] shoppers are looking at this right now
No reviews
SKU:3580
Regular price
$446.67 USD
Regular price
$0.00 USD
Sale price
$446.67 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
U.S. Motors 3580, Oil Burner Motor Type, 1/3 HP, 1725 RPM, 115 Voltage, 56N NEMA Frame, 4 .8 Amps,
| Applications | |
| Designed to meet manufacturers requirements for oil burners. | |
| Features | |
| 20" Leads, Located At 3 Oclock Viewed From End Opposite Shaft | |
| 1.0 Service Factor | |
| Reversible Rotation, Except As Noted | |
| Manual Reset Thermal Overload Protector | |
| 56N Frame Has 2 Holes And Screws for Mounting Outlet Box | |
| 56N Flange Is Enclosed, 48M And 48N Flange Are Ventilated | |
| Bearings Have All Angle Thrust System | |
| Totally Enclosed When Mounted | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
3580 |
Type |
Oil Burner Motor |
HP |
1/3 |
RPM |
1725 |
Voltage |
115 |
Bearings |
Ball |
NEMA Frame |
56N |
Amps |
4 .8 |
Shaft N |
2 .3 |
Protector |
Man |
Total C |
10 .5 |
Ship Wt. |
25 |
Symbol |
DS-3HAC |
Notes |
See Support Documents |
Support Documents (pdf) |
