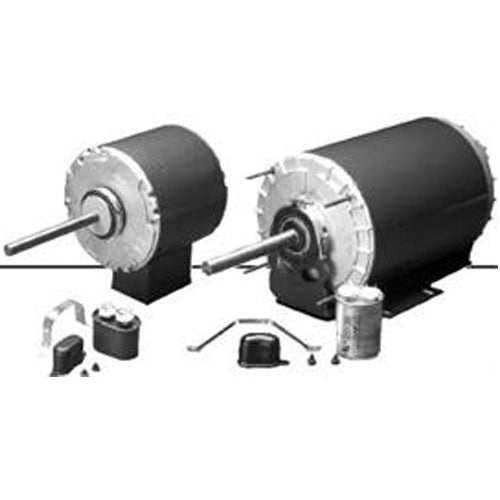

3568 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1/2 HP, 208-230 Volts, 825 RPM)

3568 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1/2 HP, 208-230 Volts, 825 RPM)

[COUNT] shoppers are looking at this right now

3568

$661.56 USD
$0.00 USD $661.56 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 3568, HP: 1/2, RPM: 825, Volts: 208-230, Shaft N: 6, Shell XI: 6, Total C: 13.4, Diameter: 6.3" Diameter, For use on condenser cooling fans

Applications
For use on condenser cooling fans in commercial air conditioning applications.
Features
Capacitor and Outlet Box Included, unless noted 40C Ambient
Reversible Rotation Dual Voltage
Double-Sealed Ball Bearings Class B Insulation
Continuous Duty, Air Over Automatic Reset Thermal Overload Protector

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
3568
HP
1/2
RPM
825
Volts
208-230
Bearings
Ball
Amps
3.6
Cap. MFD
10
Shaft N
6
Apx. Wt. (lb)
25
Shell XI
6
Total C
13.4
Diameter
6.3" Diameter
Stud YM
1.5
Mount
All Angle Mounting, Hub or Stud Mount (4) ( 5/8" shaft)
Type
Permanent Split Capacitor Commercial Condenser Fan Motor
OEM Replacement
-

Support Documents (pdf)

Product Literature
