U.S. Motors

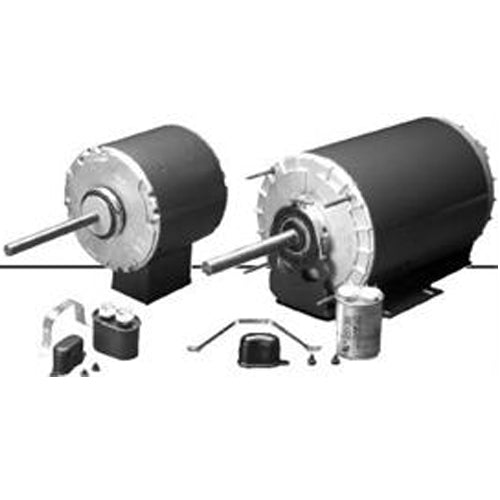

3567 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230 Volts, 825 RPM)

3567 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230 Volts, 825 RPM)

[COUNT] shoppers are looking at this right now

3567

$718.78 USD
$0.00 USD $718.78 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

US Motors Emerson 3567, HP: 3/4, RPM: 825, Volts: 208-230, Shaft N: 6, Shell XI: 7.8, Total C: 14.6, Diameter: 6.3" Diameter, For use on condenser cooling fans

Applications
For use on condenser cooling fans in commercial air conditioning applications.
Features
Capacitor and Outlet Box Included, unless noted 40C Ambient
Reversible Rotation Dual Voltage
Double-Sealed Ball Bearings Class B Insulation
Continuous Duty, Air Over Automatic Reset Thermal Overload Protector

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
3567
HP
3/4
RPM
825
Volts
208-230
Bearings
Ball
Amps
5.3
Cap. MFD
17.5
Shaft N
6
Apx. Wt. (lb)
32
Shell XI
7.8
Total C
14.6
Diameter
6.3" Diameter
Stud YM
1.5
Mount
All Angle Mounting, Hub or Stud Mount (4) ( 5/8" shaft)
Type
Permanent Split Capacitor Commercial Condenser Fan Motor
OEM Replacement
-

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
