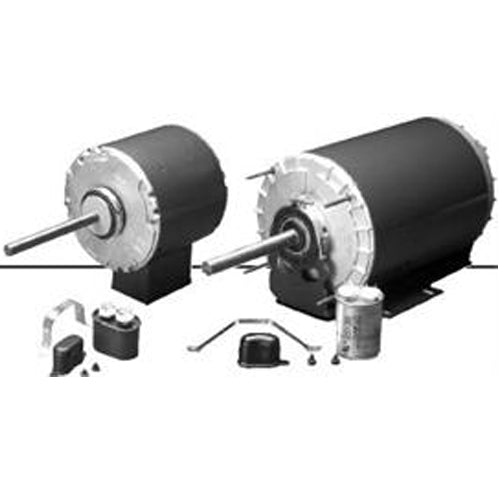

3565 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1 HP, 208-230 Volts, 1075 RPM)

3565 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1 HP, 208-230 Volts, 1075 RPM)

3565

$443.60 USD
$443.60 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson 3565, HP: 1, RPM: 1075, Volts: 208-230, Shaft N: 6, Shell XI: 6.5, Total C: 13.9, Diameter: 6.3" Diameter, For use on condenser cooling fans

Applications
For use on condenser cooling fans in commercial air conditioning applications.
Features
Capacitor and Outlet Box Included, unless noted 40C Ambient
Reversible Rotation Dual Voltage
Double-Sealed Ball Bearings Class B Insulation
Continuous Duty, Air Over Automatic Reset Thermal Overload Protector

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
3565
HP
1
RPM
1075
Volts
208-230
Bearings
Ball
Amps
5.2
Cap. MFD
17.5
Shaft N
6
Apx. Wt. (lb)
30
Shell XI
6.5
Total C
13.9
Diameter
6.3" Diameter
Stud YM
1.5
Mount
All Angle Mounting, Hub or Stud Mount (4) ( 5/8" shaft)
Type
Permanent Split Capacitor Commercial Condenser Fan Motor
OEM Replacement
-
