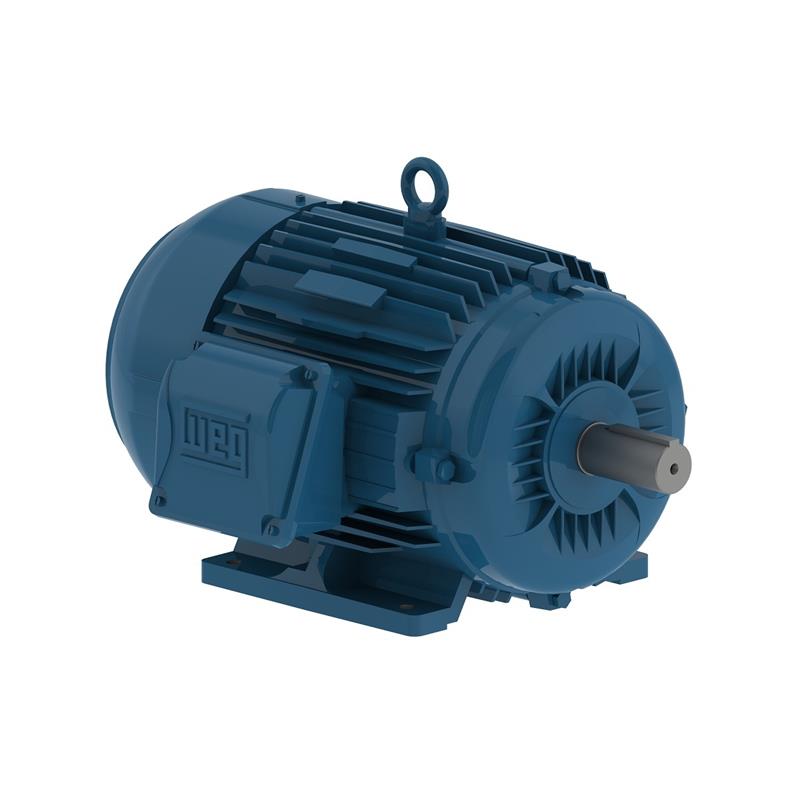

35012ET3GRB449T-W22 WEG Motor (350 HP, 1200 RPM, 3 Phase, 60 Hz, L447/9T Frame, TEFC, 460 V)
35012ET3GRB449T-W22 WEG Motor (350 HP, 1200 RPM, 3 Phase, 60 Hz, L447/9T Frame, TEFC, 460 V)
SKU:35012ET3GRB449T-W22
Regular price
$34,712.55 USD
Regular price
Sale price
$34,712.55 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 35012ET3GRB449T-W22, 350 HP, 1200 RPM, 3 Phase, 60 Hz, L447/9T Frame, Foot-mounted, TEFC, 460 V
| Applications | |
| General Application | |
| Features | |
| All NEMA Premium ratings have a 1.25 Service Factor (up to 100 HP) resulting in cooler operation and extended life of the motor | |
| All Cast Iron Construction, including Terminal Box and Fan Cover* | |
| Solid feet for reduced vibration levels and impact absorption | |
| Optimized ventilation system for cooler operation and extended life | |
| High Grade FC200 cast iron provides superior mechanical strength and heat dissipation | |
| All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture. (IP56, IP65 and IP66 available as options) | |
| Exclusive W-Seal 364T and larger provides superior bearing protection | |
| Taconite Labyrinth seal 586 Frame and larger | |
| Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE 841 standard) | |
| Balanced to 0.08 inches per second vibration limits (Meets IEEE 841 standard) | |
| Four Bolt Conduit Cover with glued Neoprene Gasket | |
Specifications | |
Brand |
WEG |
Catalog Number |
35012ET3GRB449T-W22 |
Type |
General Purpose Motor |
HP |
350 |
RPM |
1200 |
Phase |
3 |
Hertz |
60 |
Frame |
L447/9T |
Mounting |
Foot-mounted |
Enclosure |
TEFC |
Voltage |
460 |
Full Load Amps |
415 |
Full Load Efficiency |
95.8 |
Frame Material |
Cast Iron |
Service Factor |
1.15 |
"C" Dimensions |
57.181 |
Motor Efficiency Group |
NEMA Premium Efficient |
Warranty |
1 Year |
Support Documents (pdf) |
