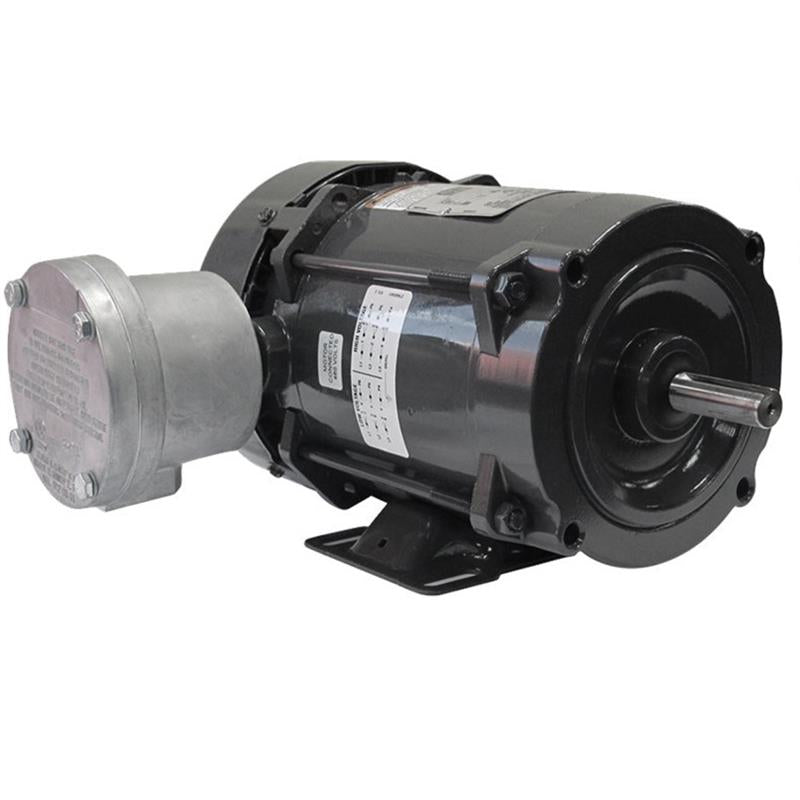

.3336XS1B56 WEG Explosion Proof Motor (0.33 HP, 3600 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof)
.3336XS1B56 WEG Explosion Proof Motor (0.33 HP, 3600 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof)
SKU:.3336XS1B56
Regular price
$446.00 USD
Regular price
Sale price
$446.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG .3336XS1B56, Series, 0.33 HP, 0.25 KW, 3600 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
.3336XS1B56 |
Type |
Explosion Proof |
HP |
0.33 |
KW |
0.25 |
RPM |
3600 |
Phase |
1 |
Service Factor |
1 |
Frame |
56 |
Voltage |
115/208-230 |
Enclosure |
Explosion Proof |
Mount |
Foot Mount |
Full Load Amps |
2.6 |
Warranty |
1 Year |
Support Documents (pdf) |
