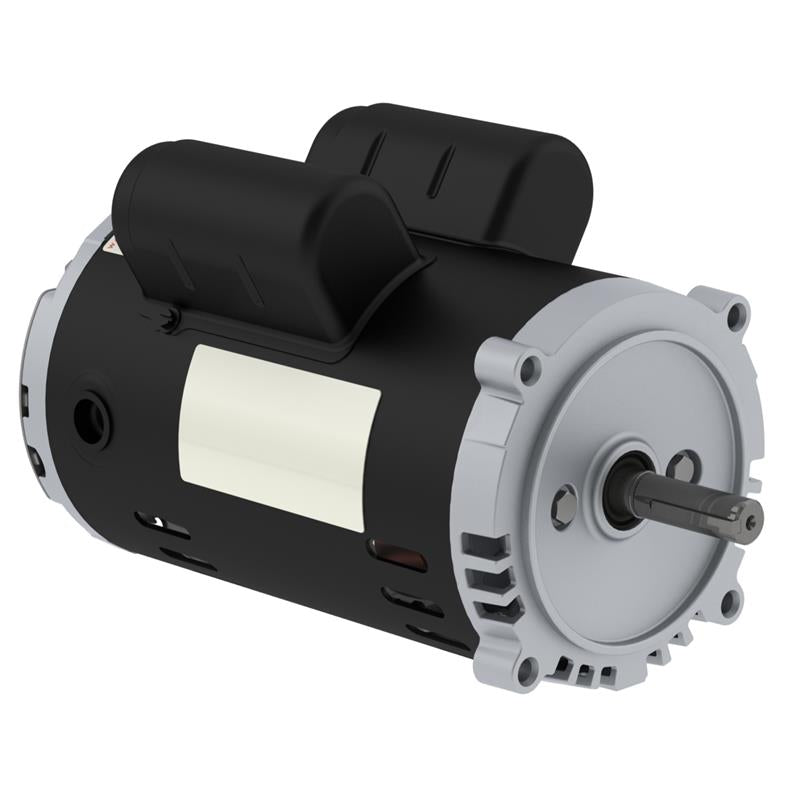

.3336OT1BW56CFL-S WEG Motor (.33 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)

.3336OT1BW56CFL-S WEG Motor (.33 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)

.3336OT1BW56CFL-S

$207.70 USD
$207.70 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .3336OT1BW56CFL-S, .33 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, Footless, ODP, 115/208-230 V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications

Brand
WEG
Catalog Number
.3336OT1BW56CFL-S
Type
General Purpose Motor
Series
C-Face Motor
HP
.33
RPM
3600
Phase
1
Hertz
60
Frame
W56C
Mounting
Footless
Enclosure
ODP
Voltage
115/208-230
Full Load Amps
1.6
Full Load Efficiency
70.5
Frame Material
Rolled Steel
Service Factor
1.35
"C" Dimensions
10.26
Warranty
1 Year
