WEG

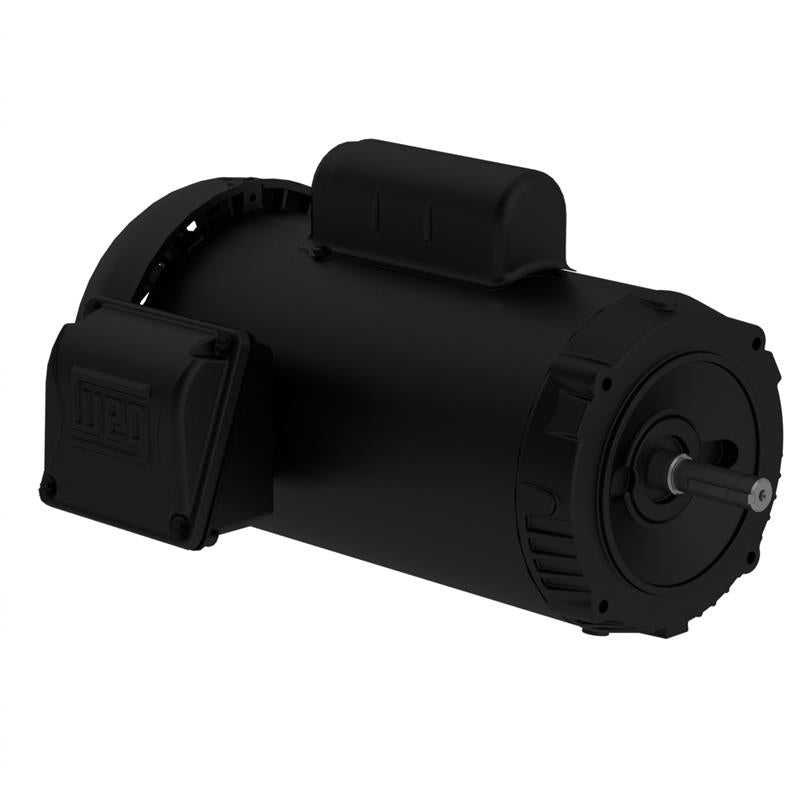

.3336ES1BW56CFL-S WEG C-Face Motor (.33 HP, 3600 RPM, 1 Phase, 60Hz, W56C Frame, Footless, TEFC, 115/208-230V)
.3336ES1BW56CFL-S WEG C-Face Motor (.33 HP, 3600 RPM, 1 Phase, 60Hz, W56C Frame, Footless, TEFC, 115/208-230V)
No reviews
SKU:.3336ES1BW56CFL-S
Regular price
$209.88 USD
Regular price
Sale price
$209.88 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG Motor .3336ES1BW56CFL-S, .33 HP, 3600 RPM, 1 Phase, 60Hz, W56C Frame, Footless, TEFC, 115/208-230V, Rolled Steel
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
.3336ES1BW56CFL-S |
Type |
General Purpose C-Face Motor |
Series |
Single Phase Motor |
HP |
.33 |
RPM |
3600 |
Phase |
1 |
Hertz |
60 |
Frame |
W56C |
Mounting |
Footless |
Enclosure |
TEFC |
Voltage |
115/208-230 |
Full Load Amps |
2.6 |
Full Load Efficiency |
53 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
Warranty |
1 Year |
Support Documents (pdf) |
