WEG

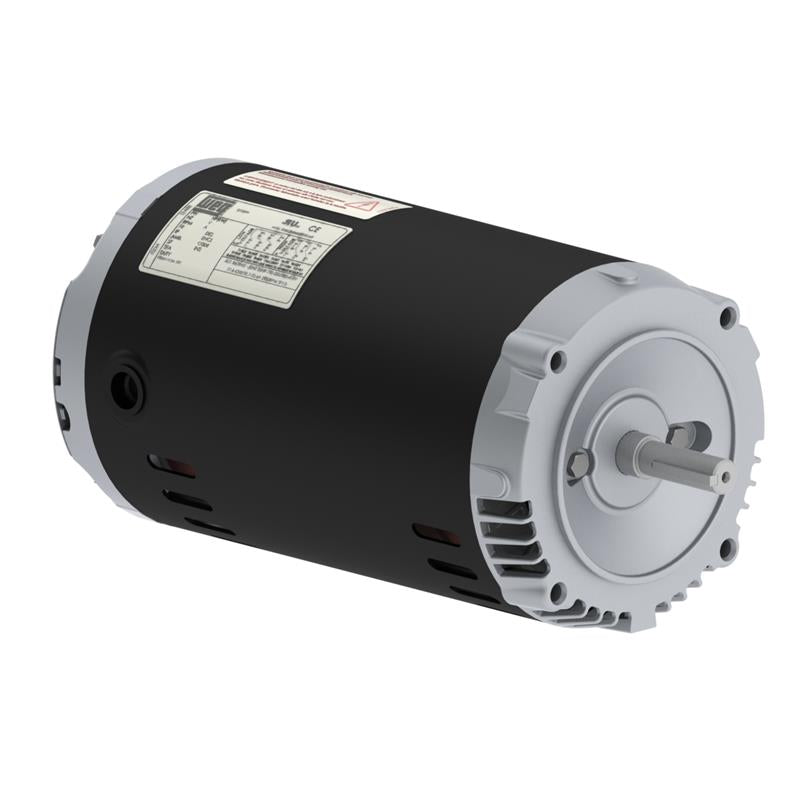

.3318OT3H56CFL-S WEG Motor (.33 HP, 1800 RPM, 3 Phase, 56C, ODP, 575 V, Footless)
.3318OT3H56CFL-S WEG Motor (.33 HP, 1800 RPM, 3 Phase, 56C, ODP, 575 V, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:.3318OT3H56CFL-S
Regular price
$252.76 USD
Regular price
$284.00 USD
Sale price
$252.76 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG .3318OT3H56CFL-S, .33 HP, 1800 RPM, 3 Phase, 56C, ODP, 575 V, Footless
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 through 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| IP21 standard | |
| F1 mount as standard | |
| Foot mount / C-face / Footless availability | |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap | |
| Aluminum endshields | |
Specifications | |
Brand |
WEG |
Catalog Number |
.3318OT3H56CFL-S |
Type |
General Purpose C-Face Motor |
HP |
.33 |
RPM |
1800 |
Phase |
3 |
Frame |
56C |
Enclosure |
ODP |
Voltage |
575 |
Full Load Amps |
0.54 |
Full Load Efficiency |
73.4 |
Frame Material |
Rolled Steel |
Service Factor |
1.35 |
"C" Dimensions |
10.315 |
Mounting |
Footless |
Warranty |
1 Year |
Support Documents (pdf) | ||||
