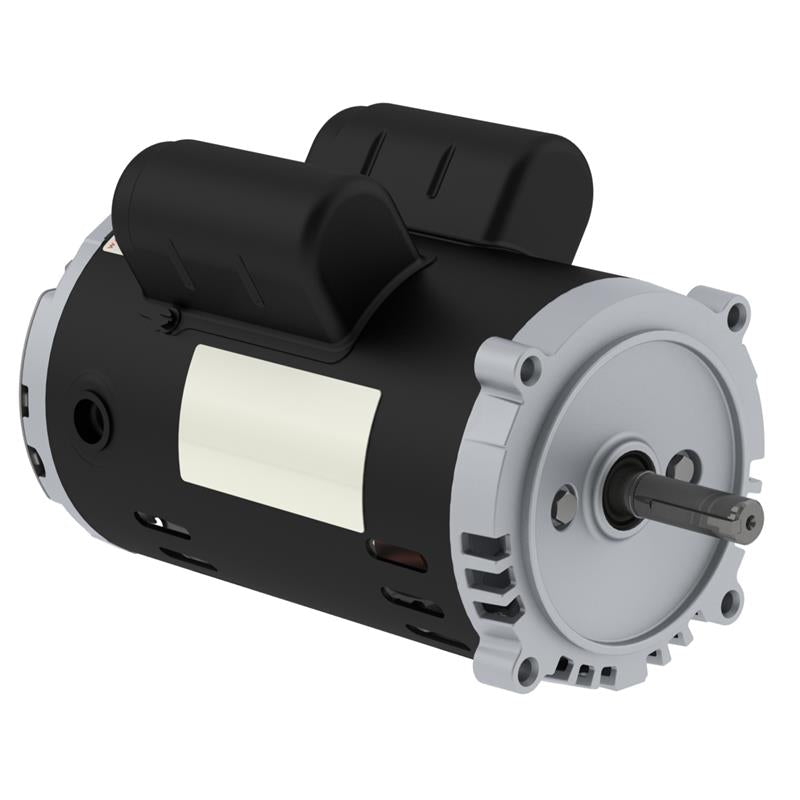

.3318OT1BW56CFL-S WEG Motor (.33 HP, 1800 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)
.3318OT1BW56CFL-S WEG Motor (.33 HP, 1800 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:.3318OT1BW56CFL-S
Regular price
$269.67 USD
Regular price
$303.00 USD
Sale price
$269.67 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG .3318OT1BW56CFL-S, .33 HP, 1800 RPM, 1 Phase, 60 Hz, W56C Frame, Footless, ODP, 115/208-230 V
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
.3318OT1BW56CFL-S |
Type |
General Purpose Motor |
Series |
C-Face Motor |
HP |
.33 |
RPM |
1800 |
Phase |
1 |
Hertz |
60 |
Frame |
W56C |
Mounting |
Footless |
Enclosure |
ODP |
Voltage |
115/208-230 |
Full Load Amps |
2.1 |
Full Load Efficiency |
72.4 |
Frame Material |
Rolled Steel |
Service Factor |
1.35 |
"C" Dimensions |
10.26 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
