WEG

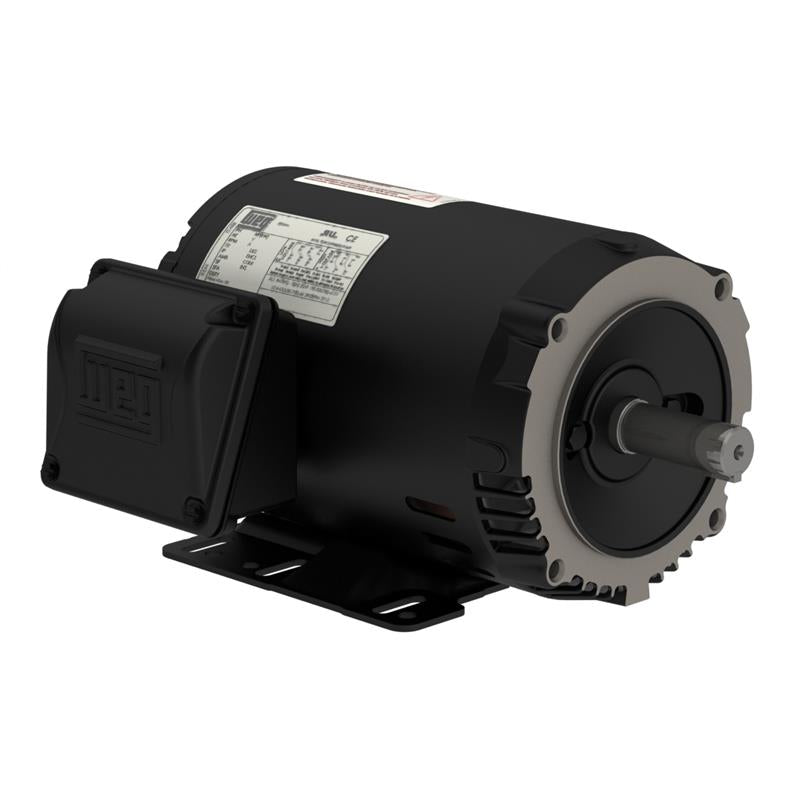

.3312OT3E56C-S WEG Motor (.33 HP, 1200 RPM, 3 Phase, 56C, ODP, 230/460 V, Foot Mount)

.3312OT3E56C-S WEG Motor (.33 HP, 1200 RPM, 3 Phase, 56C, ODP, 230/460 V, Foot Mount)

.3312OT3E56C-S

$263.08 USD
$263.08 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .3312OT3E56C-S, .33 HP, 1200 RPM, 3 Phase, 56C, ODP, 230/460 V, Foot Mount

Applications
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal.
Features
Number of poles: 2 through 6
Mounting: F-1
Efficiency levels: NEMA Premium
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
Frame Sizes: NEMA 56 to 254/6T
Foot mount / C-face / Footless availability
Aluminum endshields
Cast Iron flanges for improved strength
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Terminal box rotatable in 90 degrees increments for flexibility during installation

Specifications

Brand
WEG
Catalog Number
.3312OT3E56C-S
Type
General Purpose C-Face Motor
HP
.33
RPM
1200
Phase
3
Frame
56C
Enclosure
ODP
Voltage
230/460
Full Load Amps
0.7
Full Load Efficiency
71.4
Frame Material
Rolled Steel
Service Factor
1.35
"C" Dimensions
10.315
Mounting
Foot Mount
Warranty
1 Year

Support Documents (pdf)
View full details
