WEG

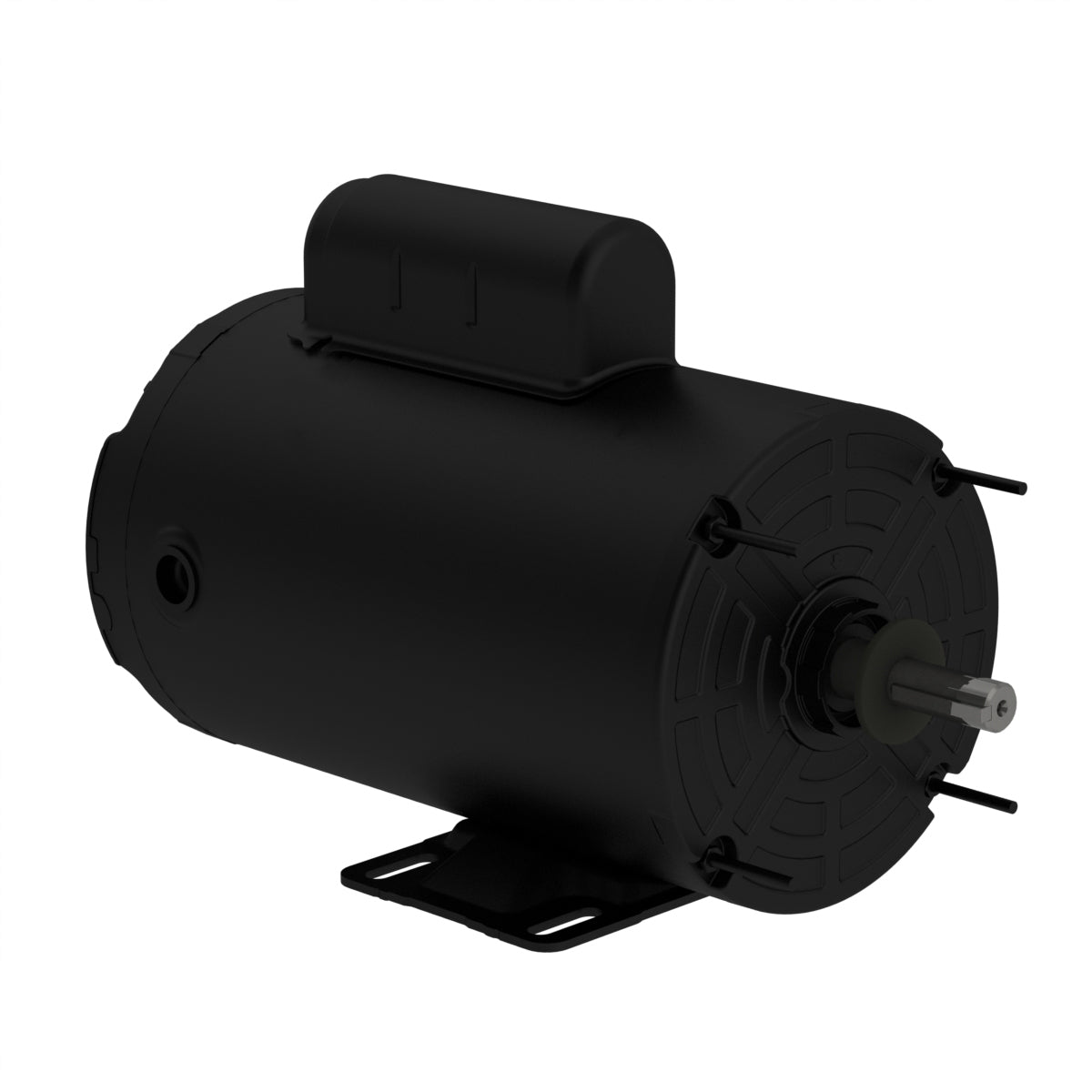

.3312AS1BPFPC48Z-S WEG Rolled Steel Fan and Exhaust Motor (0.33 HP, 6P, 48Z, 1Ph, 115/208-230 V, 60 Hz, IC418, TEAO, Foot-mounted)
.3312AS1BPFPC48Z-S WEG Rolled Steel Fan and Exhaust Motor (0.33 HP, 6P, 48Z, 1Ph, 115/208-230 V, 60 Hz, IC418, TEAO, Foot-mounted)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:15647345
Regular price
$0.00 USD
Regular price
$322.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
| Frame | 48Z |
|---|---|
| Output | 0.33 HP (0.25 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1165 rpm |
| Slip | 2.92 % |
| Rated voltage | 115/208-230 V |
| Rated current | 3.75/1.86-1.88 A |
| L. R. Amperes | 18.4/9.11-9.21 A |
| LRC | 4.9x(Code H) |
| No load current | 2.20/0.900-1.10 A |
| Rated torque | 1.49 ft.lb |
| Locked rotor torque | 40 % |
| Breakdown torque | 270 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0617 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC418 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 27.6 lb |
