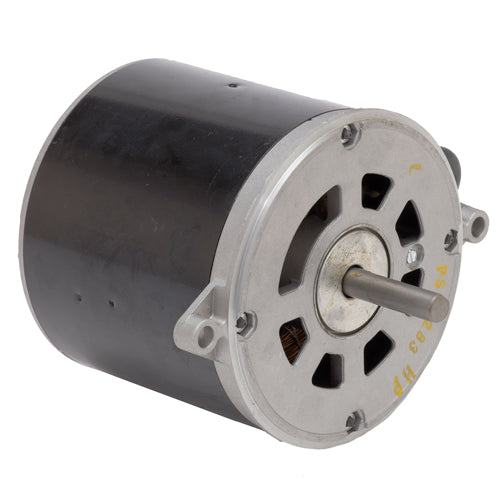

3274 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 1.7 Amps)

Name: 3274 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 1.7 Amps)
Brand: U.S. Motors
SKU: 3274
Price: 100.87 USD
Availability: InStock

👁️ [COUNT] People are currently viewing this product.

SKU:3274

$100.87 USD

~~$98.00 USD~~ $100.87 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

U.S. Motors 3274, Oil Burner Motor Type, 1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 1.7 Amps,

Applications
Designed to meet manufacturers requirements for oil burners.

Features
20" Leads, Located At 3 O'clock Viewed From End Opposite Shaft
1.0 Service Factor
Reversible Rotation, Except As Noted
Manual Reset Thermal Overload Protector
56N Frame Has 2 Holes And Screws for Mounting Outlet Box
56N Flange Is Enclosed, 48M And 48N Flange Are Ventilated
Bearings Have All Angle Thrust System
Totally Enclosed When Mounted

Specifications
Brand	U.S. Motors
Catalog Number	3274
Type	Oil Burner Motor
HP	1/7
RPM	3450
Voltage	115
Bearings	Ball
NEMA Frame	48M
Amps	1.7
Shaft N	2
Protector	Auto
Total C	6.7
Ship Wt.	12
Symbol	DS-3HAC
Notes	See Support Documents

Support Documents (pdf)
