3263 Pentair Simer Automatic Submersible Cast Iron Sewage Pump (1/2 HP, 115 Volt, 60 Hz, 18' Max Head, Tethered Switch, 2" NPT Discharge, 2" Max Solids, 022315341166 UPC)

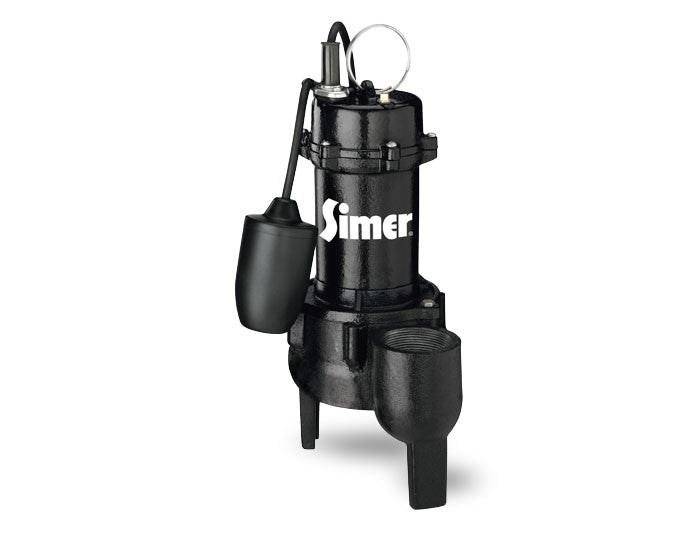

3263 Pentair Simer 1/2 HP Submersible Cast Iron Sewage Pump

Submersible sewage pump for home use in basement bathrooms, lift stations, etc.

Key Features

• Tough Cast Iron Construction
• Tethered float switch
• Automatic operation
• Capable of handling 2" solids – ideal for basement installation, pumping below-grade toilets, laundry facilities and general dewatering
• Rugged, cast iron construction maximizes pump life
• 1/2 HP motor with overload protection provides safe operation
• Easy installation

Specifications:

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  1/2 HP

MAXIMUM HEAD:  18' (5.5m)

MAXIMUM CAPACITY:  5450 GPH

FLOW at 10' LIFT:  3200 GPH (12,113 LPH)

SWITCH TYPE:  Tethered

MINIMUM SUMP DIAMETER:  14"

MINIMUM SUMP DEPTH:  30"

DISCHARGE PIPE SIZE:  2" NPT

MAXIMUM SOLIDS HANDLING SIZE:  2" spherical

VOLTAGE:  115v AC, 60 Hz
