U.S. Motors

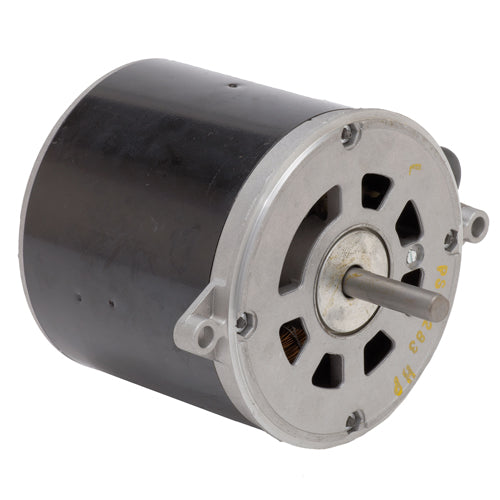

3252 U.S. Motors Oil Burner Motor (1/6 HP, 1725 RPM, 115 Voltage, 48N NEMA Frame, 3 .1 Amps)
3252 U.S. Motors Oil Burner Motor (1/6 HP, 1725 RPM, 115 Voltage, 48N NEMA Frame, 3 .1 Amps)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:3252
Regular price
$194.59 USD
Regular price
$0.00 USD
Sale price
$194.59 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
U.S. Motors 3252, Oil Burner Motor Type, 1/6 HP, 1725 RPM, 115 Voltage, 48N NEMA Frame, 3 .1 Amps,
| Applications | |
| Designed to meet manufacturers requirements for oil burners. | |
| Features | |
| 20" Leads, Located At 3 Oclock Viewed From End Opposite Shaft | |
| 1.0 Service Factor | |
| Reversible Rotation, Except As Noted | |
| Manual Reset Thermal Overload Protector | |
| 56N Frame Has 2 Holes And Screws for Mounting Outlet Box | |
| 56N Flange Is Enclosed, 48M And 48N Flange Are Ventilated | |
| Bearings Have All Angle Thrust System | |
| Totally Enclosed When Mounted | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
3252 |
Type |
Oil Burner Motor |
HP |
1/6 |
RPM |
1725 |
Voltage |
115 |
Bearings |
Ball |
NEMA Frame |
48N |
Amps |
3 .1 |
Shaft N |
2 .0 |
Protector |
Man |
Total C |
7 .6 |
Ship Wt. |
14 |
Symbol |
DS-3HAC |
Notes |
See Support Documents |
Support Documents (pdf) |
