U.S. Motors

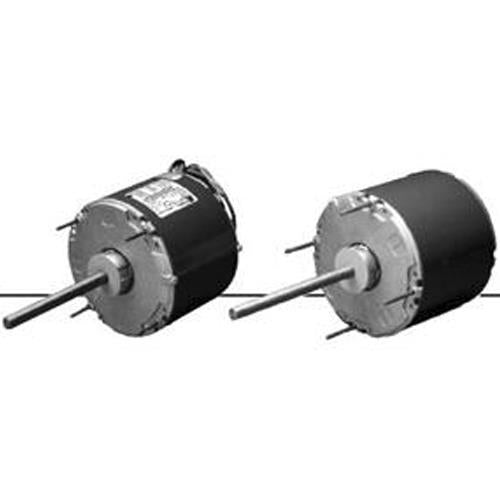

3097 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (3/4 HP, 208-230 Volts, 1075 RPM)
3097 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (3/4 HP, 208-230 Volts, 1075 RPM)
No reviews
SKU:3097
Regular price
$133.79 USD
Regular price
Sale price
$133.79 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 3097, HP: 3/4, RPM: 1075, Volts: 208-230, Diameter: 5.6", Enclosure: Open Dripproof, Air Over, For Cooling Fans
| Applications | |
| Designed to meet manufacturer's requirements for condenser cooling fans. | |
| Features | |
| High Efficiency Economizer Rated (except as noted) | Green Ground Lead |
| 60 Hz | Reversible Rotation |
| Capacitor Mounting Holes in Frame Band | Class B Insulation |
| Continuous Duty, Air Over | 30" Leads |
| Water Slinger | Double Flats on Shaft |
| Designed for use with 370V Capacitors | Enclosed Endshield at Shaft End |
| Automatic Reset Thermal Overload Protector | Sleeve Bearings have All Angle Thrust System |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
3097 |
HP |
3/4 |
RPM |
1075 |
Volts |
208-230 |
Bearings |
Slv |
Amps |
4.8 |
Cap. MFD |
10 |
Shaft N |
5 |
Apx. Wt. (lb) |
20 |
Shell XI |
6.1 |
Total C |
12.1 |
Diameter |
5.6" |
Enclosure |
Open Dripproof, Air Over |
Mount |
Stud - Shaft Up or Horizontal |
Notes |
Without Capacitor |
Type |
Permanent Split Capacitor Condenser Fan Motor |
OEM Replacement |
- |
Support Documents (pdf) | ||||
| Product Literature | ||||
