U.S. Motors

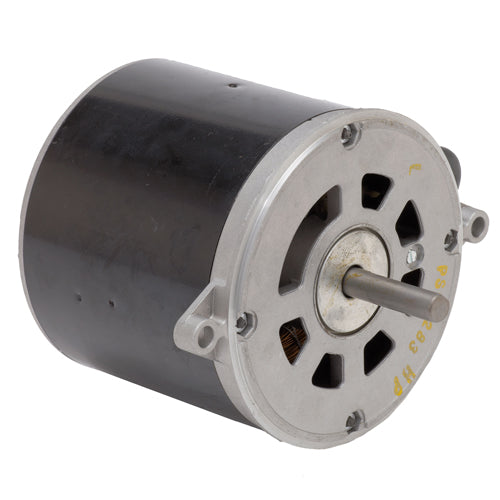

3083 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 2 .6 Amps)

3083 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 2 .6 Amps)

[COUNT] shoppers are looking at this right now

3083

$159.88 USD
$0.00 USD $159.88 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors 3083, Oil Burner Motor Type, 1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 2 .6 Amps,
Applications
Designed to meet manufacturers requirements for oil burners.
Features
20" Leads, Located At 3 Oclock Viewed From End Opposite Shaft
1.0 Service Factor
Reversible Rotation, Except As Noted
Manual Reset Thermal Overload Protector
56N Frame Has 2 Holes And Screws for Mounting Outlet Box
56N Flange Is Enclosed, 48M And 48N Flange Are Ventilated
Bearings Have All Angle Thrust System
Totally Enclosed When Mounted

Specifications

Brand
U.S. Motors
Catalog Number
3083
Type
Oil Burner Motor
HP
1/7
RPM
3450
Voltage
115
Bearings
Ball
NEMA Frame
48M
Amps
2 .6
Shaft N
2 .0
Protector
Man
Total C
7 .3
Ship Wt.
10
Symbol
DS-3HAC
Notes
See Support Documents
