WEG

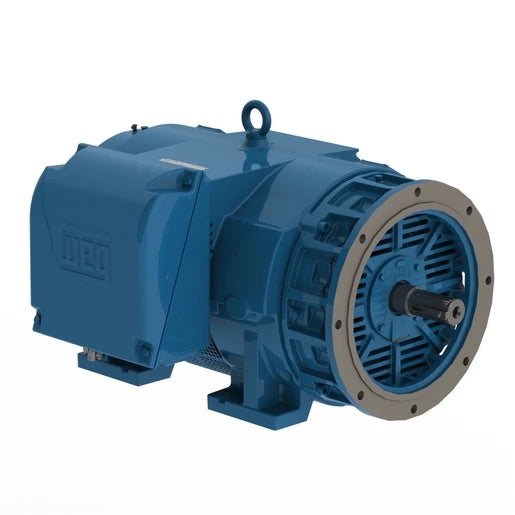

30018OT3H447/9TSD-W4 WEG Motor (300 HP, 1800 RPM, 3 Phase, 60 Hz, 447/9TSD Frame, ODP, 575 V, Foot Mount)

30018OT3H447/9TSD-W4 WEG Motor (300 HP, 1800 RPM, 3 Phase, 60 Hz, 447/9TSD Frame, ODP, 575 V, Foot Mount)

30018OT3H447/9TSD-W4

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 30018OT3H447/9TSD-W4, 300 HP, 1800 RPM, 3 Phase, 60 Hz, 447/9TSD Frame, ODP, 575 V, Foot Mount

Applications
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering lowvibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standardsand the minimum efficiency level programs in worldwide.
Features
Rated output: NEMA (60 Hz) - 15 to 2,500 HP
Number of poles: 2 through 6
Frame sizes NEMA 254T to L6808/09
Frequency: 50 or 60 Hz
Voltage: 208 to 4,160 V
Degree of protection ODP (IP23) for frames 256T to L5810 WPI (IP24) for frame size L6808/09
Efficiency levels: NEMA Premium Efficiency (60Hz)
Color: RAL 5009
Cooling method: IC-01 according to DIN EN 60034-6
Mounting: F-1
Frame, end-shields and terminal box material: FC 200 cast iron

Specifications

Brand
WEG
Catalog Number
30018OT3H447/9TSD-W4
Type
General Purpose Motor
HP
300
RPM
1800
Phase
3
Frequency
60 Hz
Frame
447/9TSD
Enclosure
ODP
Voltage
575
Mounting
Foot Mount
Full Load Amps
259
Full Load Efficiency
95.8
Frame Material
Cast Iron
Service Factor
1.15
"C" Dimensions
42.959
Warranty
1 Year
