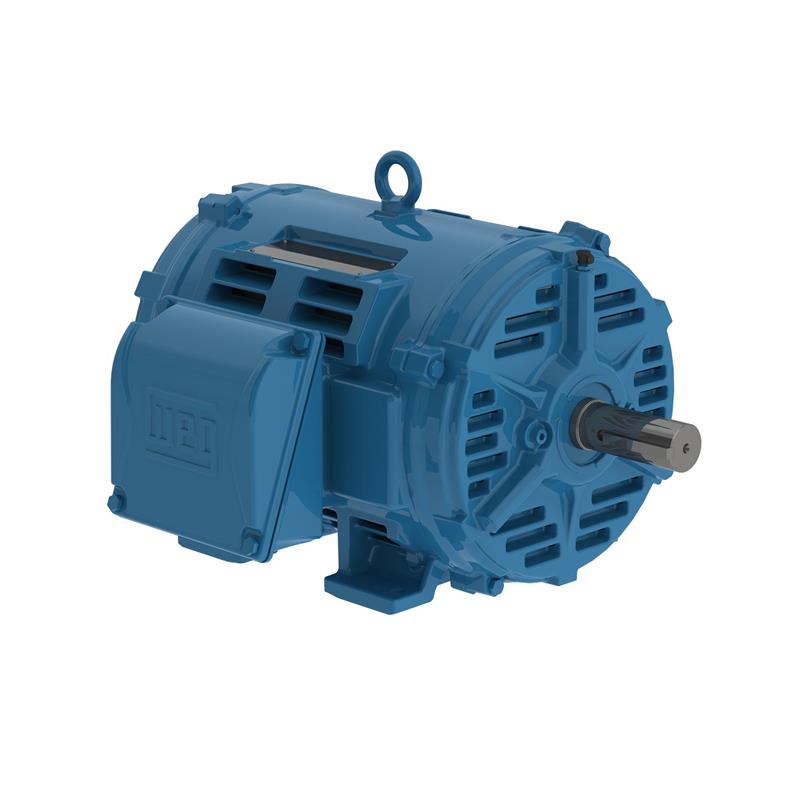

30012OT3G447/9T-W40 WEG Motor (350 HP, 1200 RPM, 3 Phase, 60 Hz, 447/9T Frame, ODP, 460 V, Foot Mount)

30012OT3G447/9T-W40 WEG Motor (350 HP, 1200 RPM, 3 Phase, 60 Hz, 447/9T Frame, ODP, 460 V, Foot Mount)

[COUNT] shoppers are looking at this right now

30012OT3G447/9T-W40

$26,569.17 USD
$29,853.00 USD $26,569.17 USD
Sale Sold out
Shipping calculated at checkout.

WEG 30012OT3G447/9T-W40, 350 HP, 1200 RPM, 3 Phase, 60 Hz, 447/9T Frame, ODP, 460 V, Foot Mount
Applications
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards and the minimum efficiency level programs in worldwide.
Features
Rated output: NEMA (60 Hz) - 15 to 2,500 HP
Number of poles: 2 through 6
Frame sizes NEMA 254T to L6808/09
Frequency: 50 or 60 Hz
Voltage: 208 to 4,160 V
Degree of protection ODP (IP23) for frames 256T to L5810 WPI (IP24) for frame size L6808/09
Efficiency levels: NEMA Premium Efficiency (60Hz)
Color: RAL 5009
Cooling method: IC-01 according to DIN EN 60034-6
Mounting: F-1
Frame, end-shields and terminal box material: FC 200 cast iron

Specifications

Brand
WEG
Catalog Number
30012OT3G447/9T-W40
Type
General Purpose Motor
HP
350
RPM
1200
Phase
3
Frequency
60 Hz
Frame
447/9T
Enclosure
ODP
Voltage
460
Mounting
Foot Mount
Full Load Amps
366
Full Load Efficiency
95.4
Frame Material
Cast Iron
Service Factor
1.15
"C" Dimensions
48.317
Warranty
1 Year
