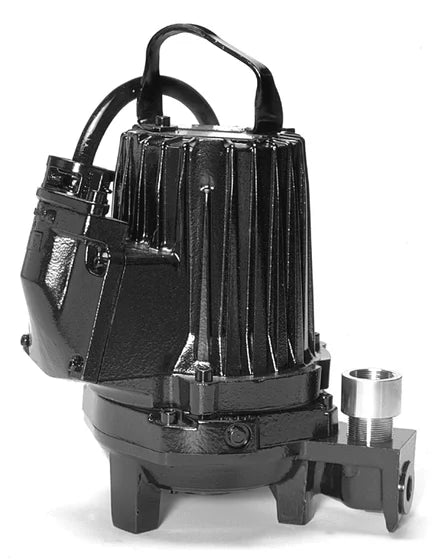

• 2GA81H1KDX Goulds Pumps Explosion Proof Submersible Grinder Pump (5.4 HP, 1 Phase, 230 Volts)
1 1

Goulds Pumps

2GA81H1KDX Goulds Pumps Explosion Proof Submersible Grinder Pump (5.4 HP, 1 Phase, 230 Volts)

2GA81H1KDX Goulds Pumps Explosion Proof Submersible Grinder Pump (5.4 HP, 1 Phase, 230 Volts)

2GA81H1KDX

$9,523.64 USD
$14,794.00 USD $9,523.64 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds Pumps 2GA81H1KDX, 2GA Series , 5.4 HP, 1 Phase, 230 Volts,

Applications
High head and pressure sewage systems for: Municipal, Commercial, Industrial.
Features
Design: Capable of grinding municipal, commercial and industrial sewage.
Cutter System: Designed to reduce sewage to a fine slurry.
Impeller: Cast iron, semi-open, non-overloading multivane design with pump-out vanes for mechanical seal protection.
Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system.
Paint: Two coat paint system for superior surface protection.
Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.
NEMA type B Motor
Class F insulation
SINGLE PHASE UNITS require capacitors. See panels BCP5 R13 for Standard Construction and Explosion Proof.
THREE PHASE UNITS can use standard panel selections with option added for minicas device (i.e. options O, simplex and P, duplex).

Specifications

Brand
Goulds Pumps
Catalog Number
2GA81H1KDX
Type
Explosion Proof Submersible Grinder Pumps
Series
2GA Series
HP
5.4
Phase
1
Volts
230
RPM
3450
Discharge Size
2"
Impeller Code
K
Max Amps
22
Start Amps
120
Locked Rotor Amps
100
Power Cable Size
12/8
Approx. Pump Wt. (Lbs.)
172
Maximum Capacity
198 GPM
Maximum Total Head
178 TDH
Notes
See support documents

Support Documents (pdf)
View full details
