Goulds Pumps

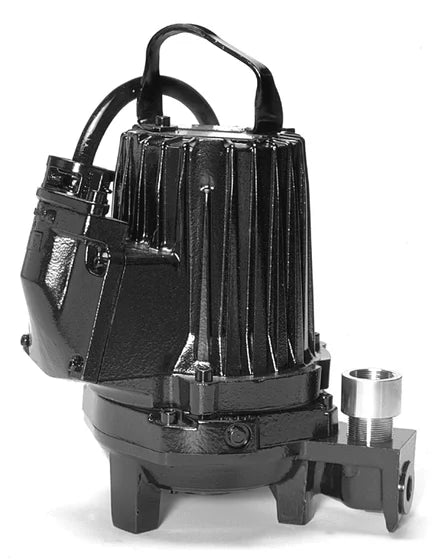

2GA31K4ADX Goulds Explosion Proof Submersible Grinder Pump (11 HP, 3 Phase, 460 Volts)

2GA31K4ADX Goulds Explosion Proof Submersible Grinder Pump (11 HP, 3 Phase, 460 Volts)

[COUNT] shoppers are looking at this right now

2GA31K4ADX

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds Pumps 2GA31K4ADX, 2GA Series , 11 HP, 3 Phase, 460 Volts,

Applications
High head and pressure sewage systems for: Municipal, Commercial, Industrial.
Features
Design: Capable of grinding municipal, commercial and industrial sewage.
Cutter System: Designed to reduce sewage to a fine slurry.
Impeller: Cast iron, semi-open, non-overloading multivane design with pump-out vanes for mechanical seal protection.
Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system.
Paint: Two coat paint system for superior surface protection.
Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.
NEMA type B Motor
Class F insulation
SINGLE PHASE UNITS require capacitors. See panels BCP5 R13 for Standard Construction and Explosion Proof.
THREE PHASE UNITS can use standard panel selections with option added for minicas device (i.e. options O, simplex and P, duplex).

Specifications

Brand
Goulds Pumps
Catalog Number
2GA31K4ADX
Type
Explosion Proof Submersible Grinder Pumps
Series
2GA Series
HP
11
Phase
3
Volts
460
RPM
3475
Discharge Size
2"
Impeller Code
A
Max Amps
13
Start Amps
113
Locked Rotor Amps
82
Power Cable Size
8/4 &10/3*
Approx. Pump Wt. (Lbs.)
241
Maximum Capacity
198 GPM
Maximum Total Head
178 TDH
Notes
See support documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
