• 2AB35HME05 Goulds Pumps Integrated Variable Speed Constant Pressure System (2 HP, Single Phase, 208-230 Volts)
1 2

Goulds Pumps

2AB35HME05 Goulds Integrated Variable Speed Constant Pressure System (2 HP, Single Phase, 208-230 Volts)

2AB35HME05 Goulds Integrated Variable Speed Constant Pressure System (2 HP, Single Phase, 208-230 Volts)

[COUNT] shoppers are looking at this right now

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds Pumps 2AB35HME05, Aquavar e-AB3 , 2 HP, Single Phase, 208-230 Volts,
Applications
An ideal solution for most buildings; from family houses up to 10 floor apartment buildings, commercial building services and OEM applications. Additional applications include: pressure boosting and water supply systems, industrial washing and cleaning, water treatment, reverse osmosis systems, food and beverage, car wash, OEM.
Features
A HIGH PERFORMANCE solution for both residential and commercial customers who need to increase their water pressure when water demand is high.
Ultra-premium efficiency: State-of-the-art hydraulics with best-in-class efficiency mean the lowest possible operating costs. Features the Xylem Smart Motor an ultra-premium IE5 permanent, magnet motor.
Programmed to motor electrical characteristics; just select set pressure
Exceeds hydraulic performance of fixed speed versions in a more compact design
Almost silent, even when its working at its peak.
High efficiency hydraulics, motor and thick metal pump body keep the noise level to a minimum.
Available in six models for a wide range of applications, including chillers, heating, air conditioning and vehicle washing.
The broad hydraulic coverage meets flow and head needs in a wide range of applications.

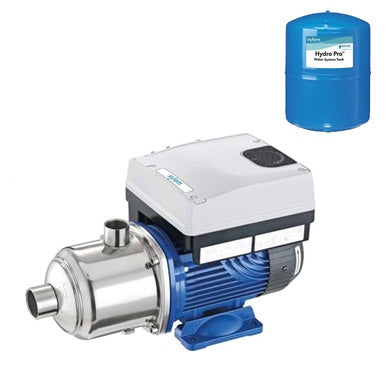

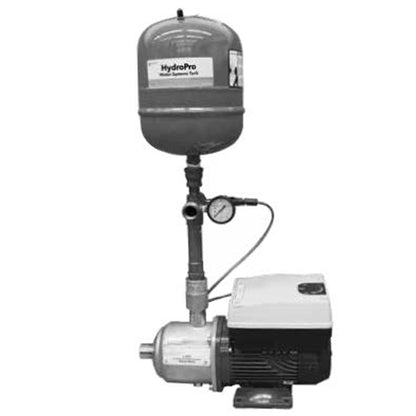

Includes a complete kit for installationpump, Smart Motor, gauge, tank and tee.
Can operate single or multipump systems with auto lead/lag and alternate for up to three pumps with no need for an external control panel or PLC.
Certifications include: UL778, NSF 61, NSF 372
— Includes a complete kit for installation—pump, Smart Motor, gauge, tank and tee.

Specifications

Brand
Goulds Pumps
Catalog Number
2AB35HME05
Type
Integrated Variable Speed Constant Pressure Systems
Series
Aquavar e-AB3
HP
2
Phase
Single
Volts
208-230
NEMA
3R
Pump Included
e-HM
# of Pump Stages
5
Tank Included
V15P
Transducer
Included
Suction
1.25"
Discharge
1"
Notes
See Support Documents

Support Documents (pdf)
